Apple Mac mini - Page 115

Mac mini (Late 2009) Take Apart — Hard Drive Carrier (Late 2009) 11 5
2009-11-03
Removal

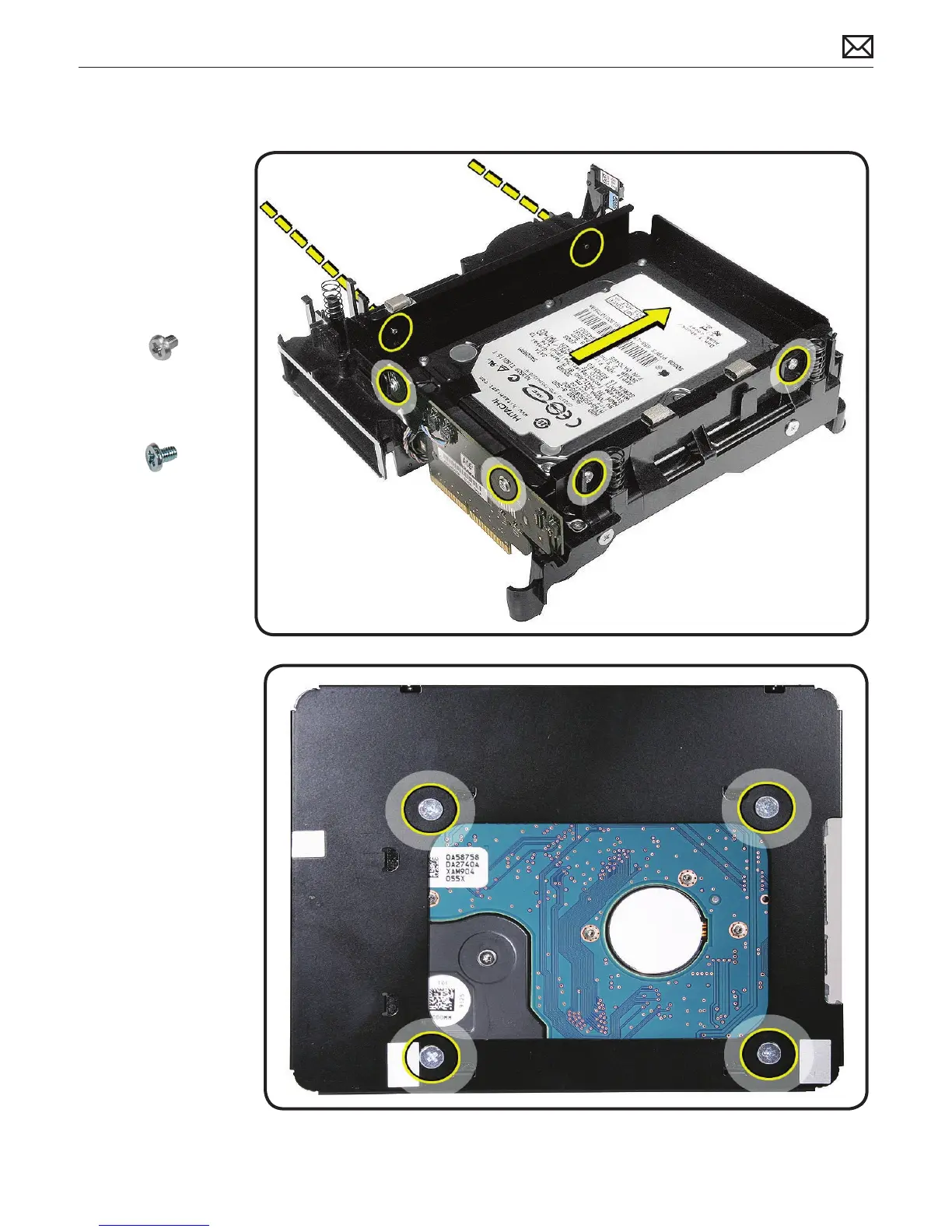

1 Remove 6 screws; 4
from the carrier and 2
from the interconnect
board.
(4) 922-8822•
(2) 922-8820 •
Disconnect the 2
hard drive from the
interconnect board.
Slide hard drive
carrier o the internal
frame.
3 If you are replacing
the carrier, remove 4
carrier screws and
transfer hard drive to
replacement carrier.
