Mac mini (Late 2009) Take Apart — Fan 126
2009-11-03

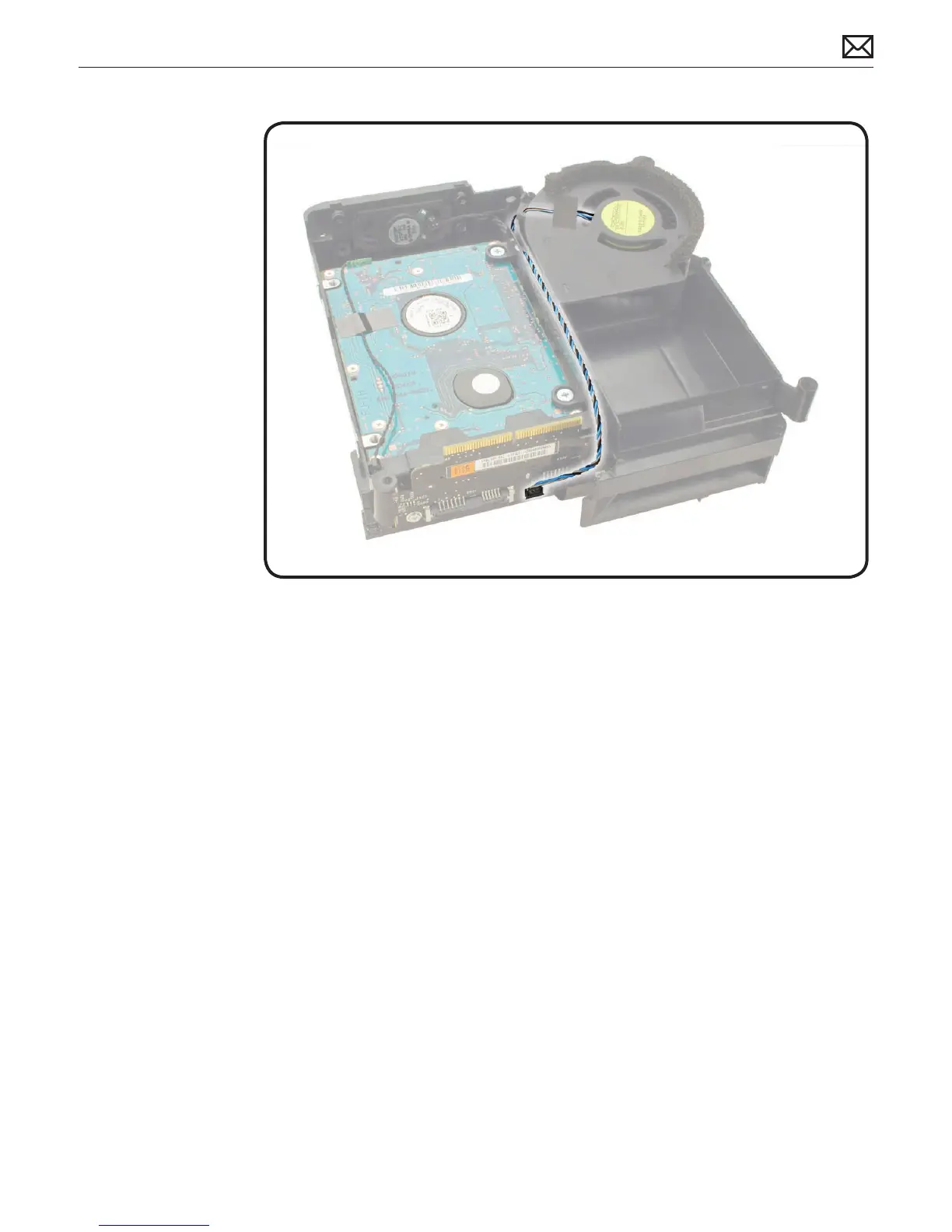

3 Remove the fan cable
from the cable
channel.
Disconnect the 4
twisted (black, blue
and gray) fan cable
from connector J205
on the interconnect
board.
Replacement
Note: Make sure to
connect the fan. If
the fan connector
is disconnected, the
computer will quickly
ash the LED and
then shut down.
