Mac mini (Late 2009) Take Apart — Interconnect Board 12 8
2009-11-03
Removal
Remove the black 1
tape (not shown)
covering the 3
connectors.

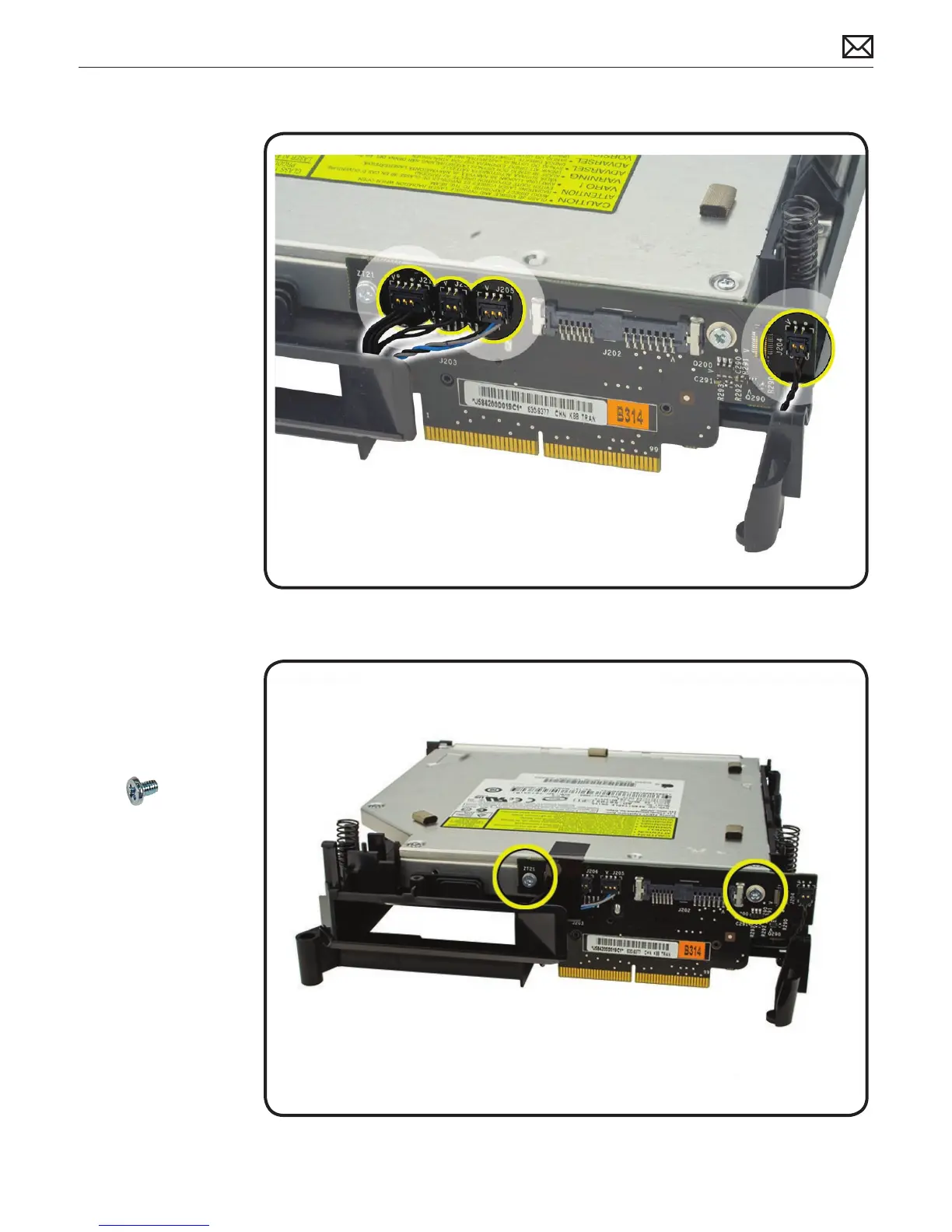

Disconnect 4 cables:2
IR (J211)•
speaker (J206)•
fan (J205)•
hard drive sensor •
(J204)
3 Using Phillips #0
screwdriver, remove 2
screws 922-8820.
Pry the interconnect 4.
board from the
connectors on the
optical and hard drive.
