Mac mini (Late 2009) Take Apart — Interconnect Board (Late 2009) 130
2009-11-03

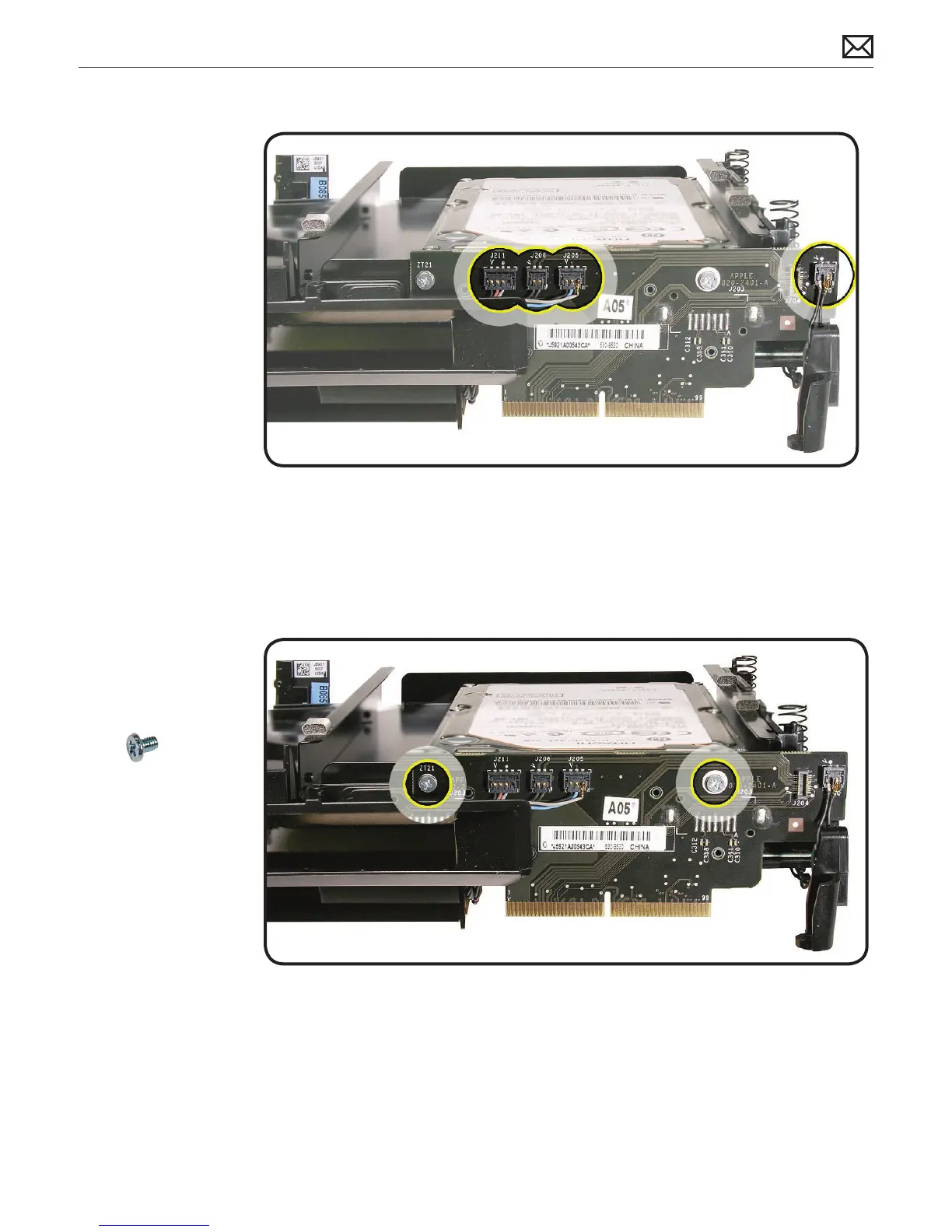

Removal
Remove black mylar 1
tape covering the
connectors.
Disconnect 4 cables:2
IR (J211)•
speaker (J206)•
fan (J205)•
hard drive sensor •
(J204)
3 Remove 2 Phillips #0
screws 922-8820.
Pry the interconnect 4.
board from the
connectors on the 2
hard drives.
