Apple Mac mini - Page 143

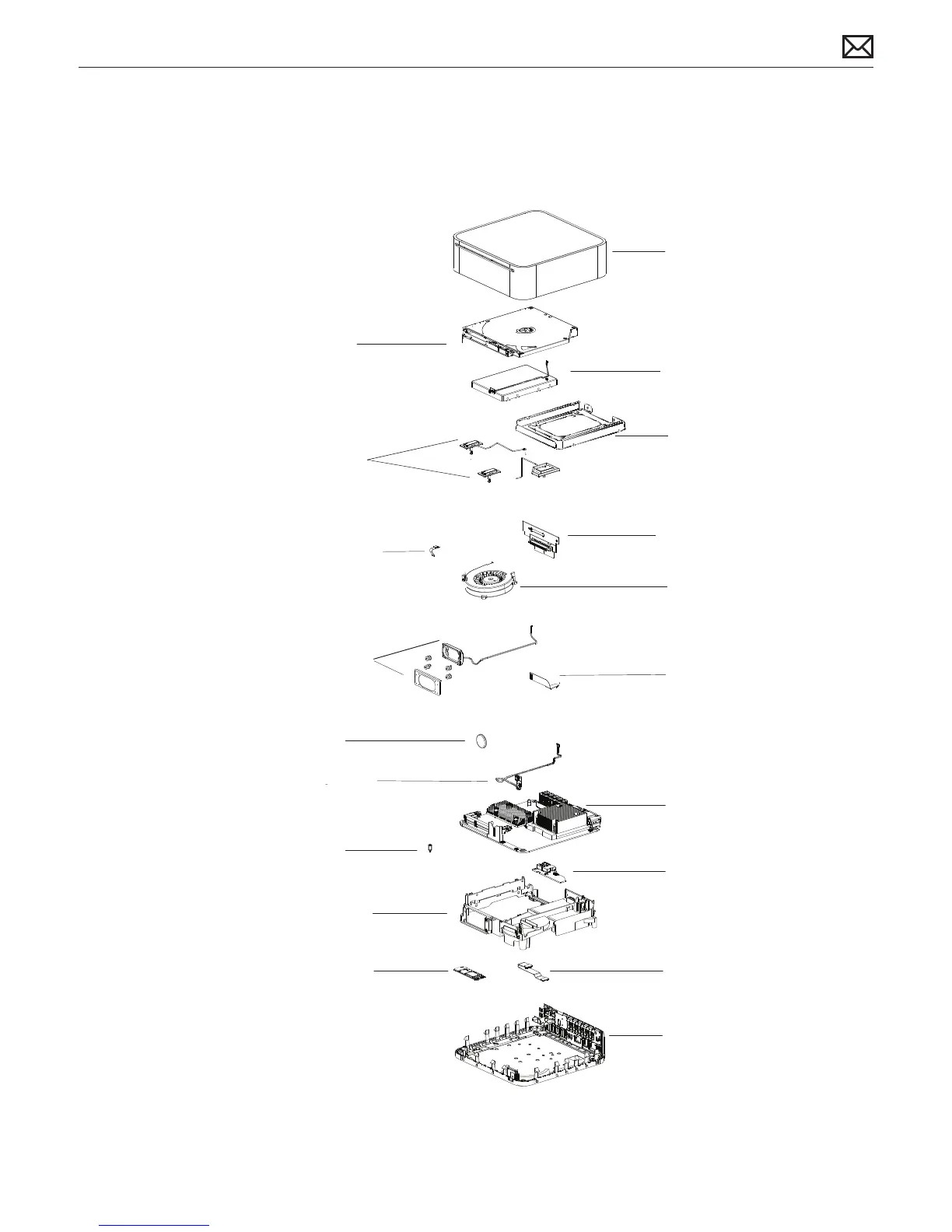

Mac mini (Late 2009) Exploded View 143
2008-08-27
Exploded View
Battery
922-8802
IR Board/Cable
922-8805
922-9113 *
Logic Board
661-5290, 2.26 GHz
661-5291, 2.53 GHz
661-5389, 2.66 GHz
Audio Board
922-8803
Internal Frame
922-8811
Audio Board
Flex Cable
922-8809
Speaker Kit
076-1328
Interconnect Board
922-8807, optical and hard drive
922-9112, dual hard drive
Fan
922-8804
BlueTooth/AirPort
Antenna Kit
076-1352
Antenna Springs, Pkg. of 5
922-8969
Optical Drive
Super Drive, 8x
Slot, SATA
661-5243
Hard Drive, w/sensor
661-5176, 2.5”, 160 GB
661-5201, 2.5”, 320 GB
661-5293, 2.5”, 500 GB, Upper
661-5294, 2.5”, 500 GB, Lower
Hard Drive Carrier
922-9144, dual hard drive
Top Housing,
922-8812, w/optical slot
922-9116, w/o optical slot
AirPort/BlueTooth
Flex Cable
922-8810
Bottom Housing
922-8801
922-9114
AirPort/Bluetooth
Card
Standoff
922-8816
EMI Clip, Optical
922-8940
AirPort/BlueTooth
Combo Card
661-4970
B661-4970
J661-4970
KH661-4970
PA661-4970
z661-4970
SDRAM (not shown)
661-5287, 1 GB, DDR3, 1066
661-5288, 2 GB, DDR3, 1066
