Apple Mac mini - Page 98

Mac mini (Late 2009) Take Apart — Antennas 98
2009-11-03

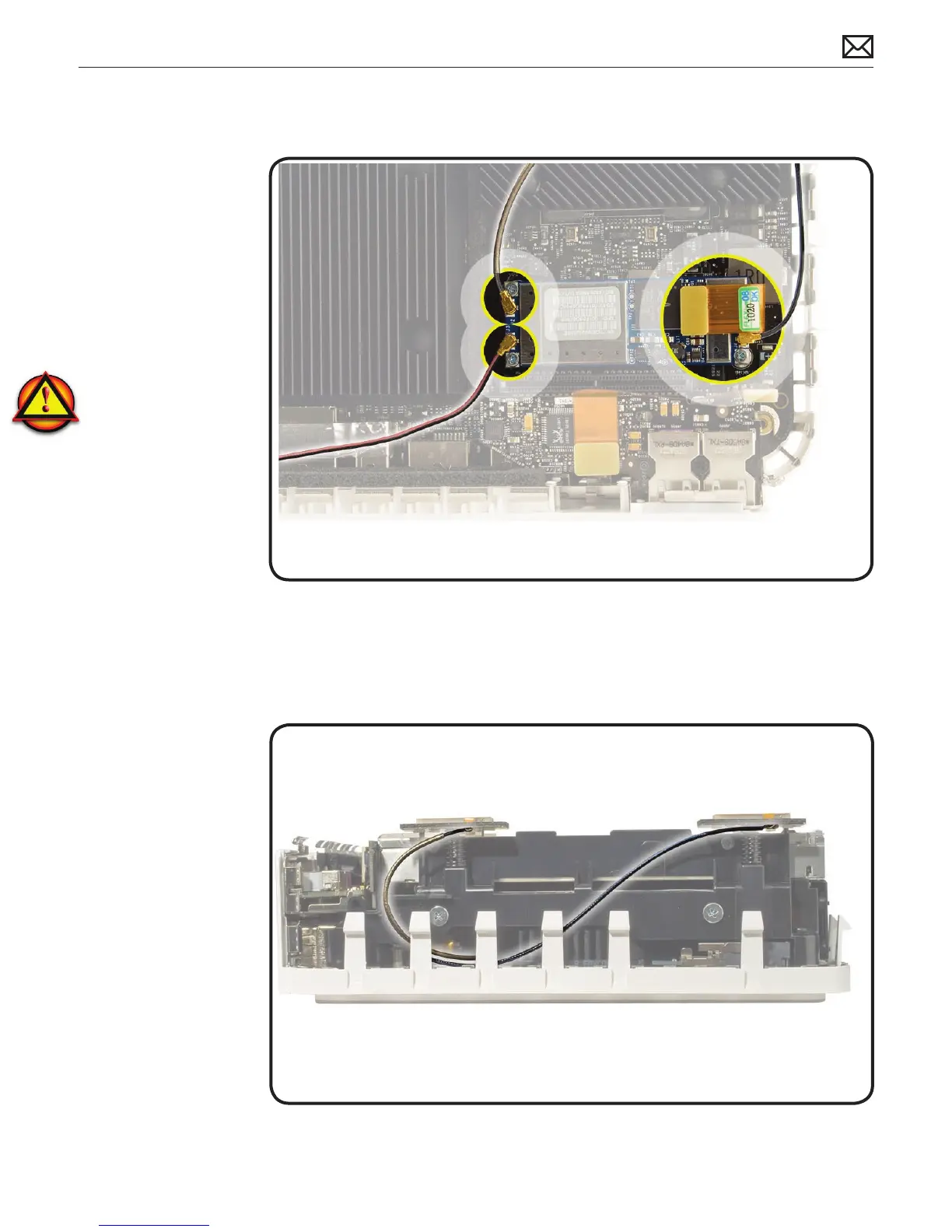

5 On the AirPort/
Bluetooth card,
carefully disconnect
red antenna from J3•
gray antenna from J2 •
blue antenna •
(Bluetooth) from J4
exible AirPort/•
Bluetooth cable
WARNING: Be careful
not to damage the
antenna connectors
as it may induce
antenna or AirPort/
Bluetooth card
replacement.
Lift antennas out of 6
computer.
Reassembly
Route the antennas 1
so they aren’t pinched
when the internal
frame is replaced.
