12 - Power Mac G5 Upgrades
AirPort and Bluetooth Upgrade

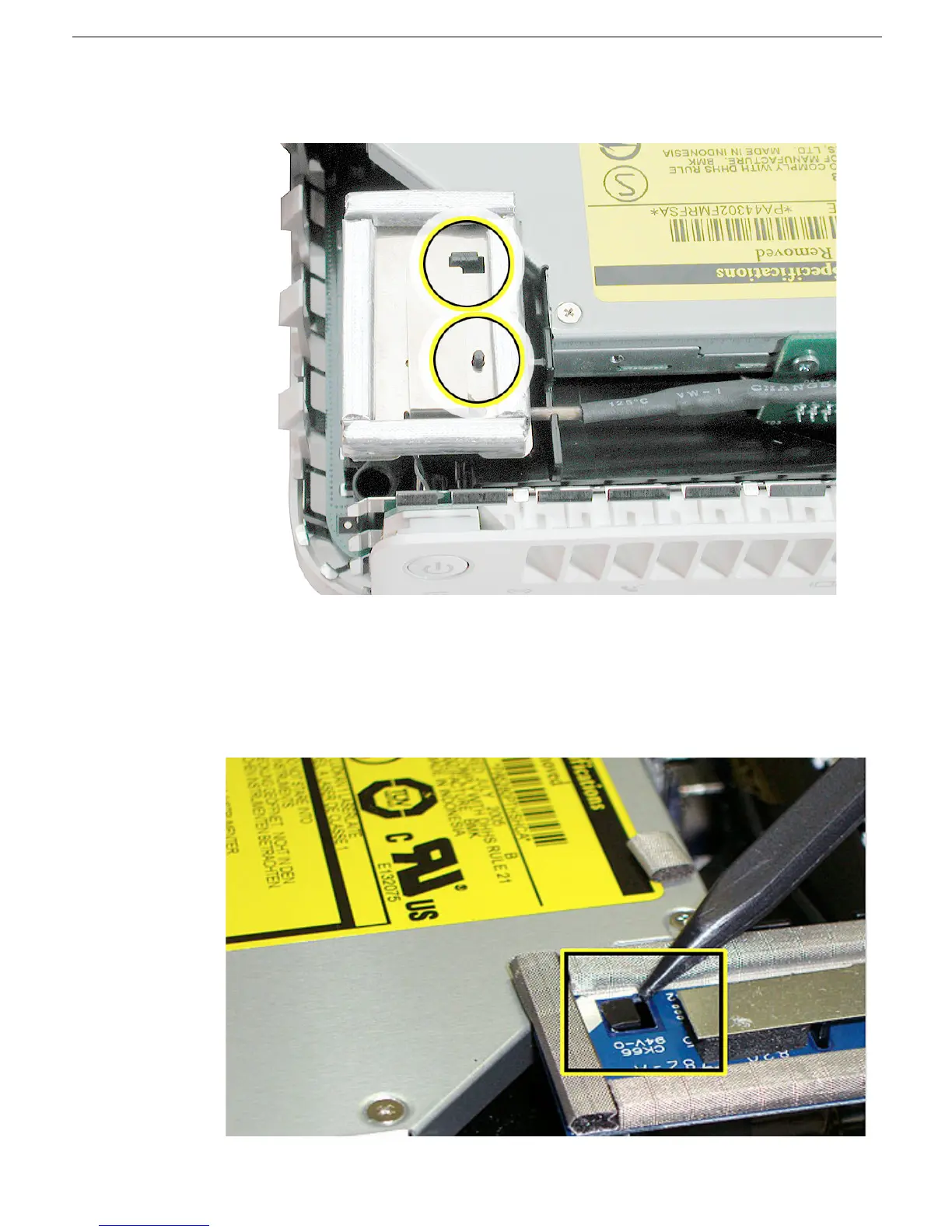

26. Lower the AirPort Extreme antenna over the black post and the clip (circled below) on
the internal frame.
27. Note: If the airport antenna board contained in the finished goods upgrade kit has too
large a hole (shown below) for the internal frame to clip onto, use additional kapton
tape to secure the antenna to the internal frame. Either place a little kapton tape
beneath the antenna board or place a strip of tape next to and running parallel to the
antenna board, going from the optical drive across to the internal frame, securing the
antenna cable to the internal frame.
