18 - Power Mac G5 Upgrades
Modem Upgrade Kit
Procedure
1. Turn over the logic board.
2. Slide the RJ-11 connector onto the logic board.
3. Reinstall the logic board into the bottom housing. Line up the ports on the board with
the openings on the bottom housing.
4. Replace the logic board screw.
5. Connect the power and the LED cables to their connectors on the logic board.

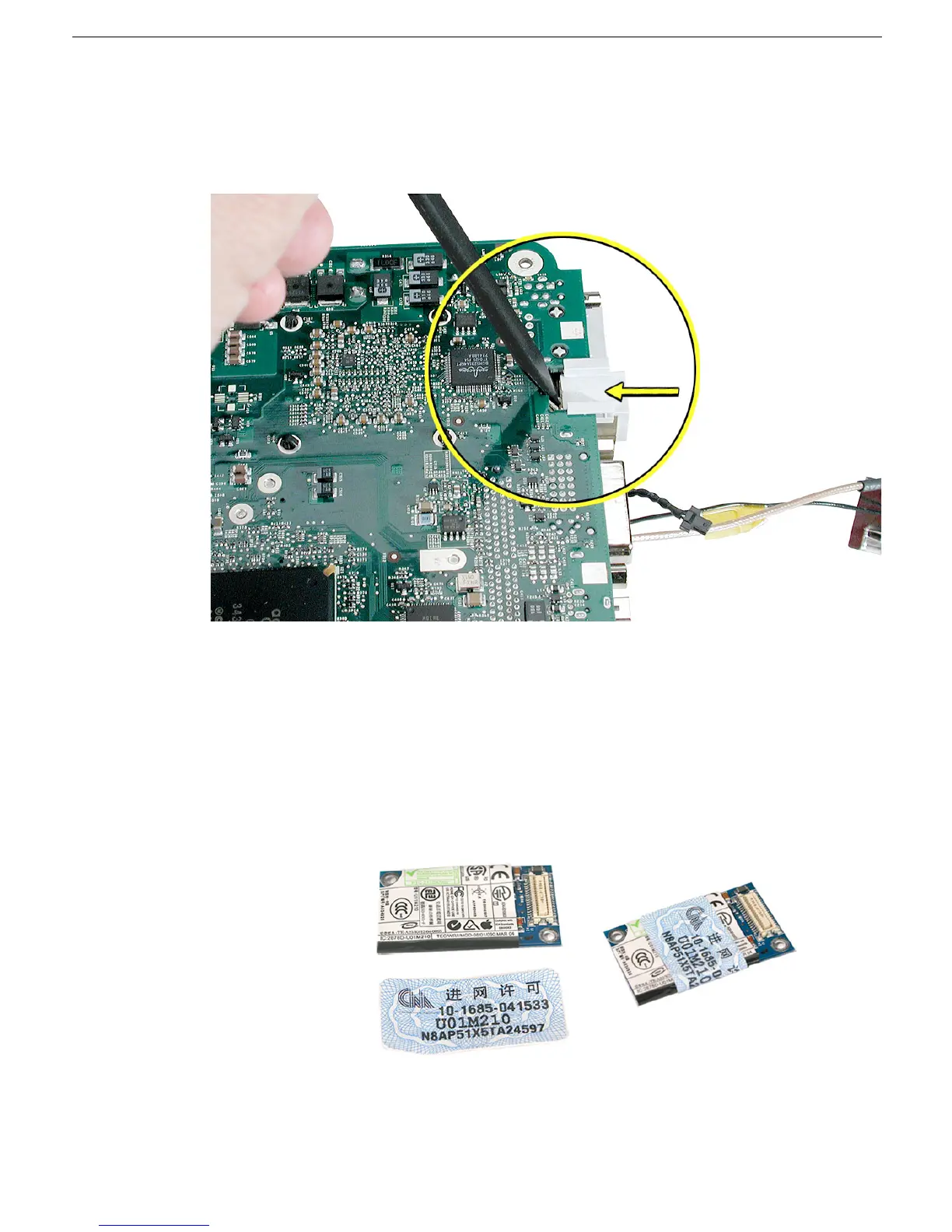

6. Note for Chinese Installations Only: The Chinese upgrade kit includes a China-
specific label that you must apply to the modem. To attach the label, remove the
protective backing and wrap the label around the modem as illustrated below.
