28 - Power Mac G5 Upgrades
AirPort Extreme/Bluetooth Card for Mac mini (Late

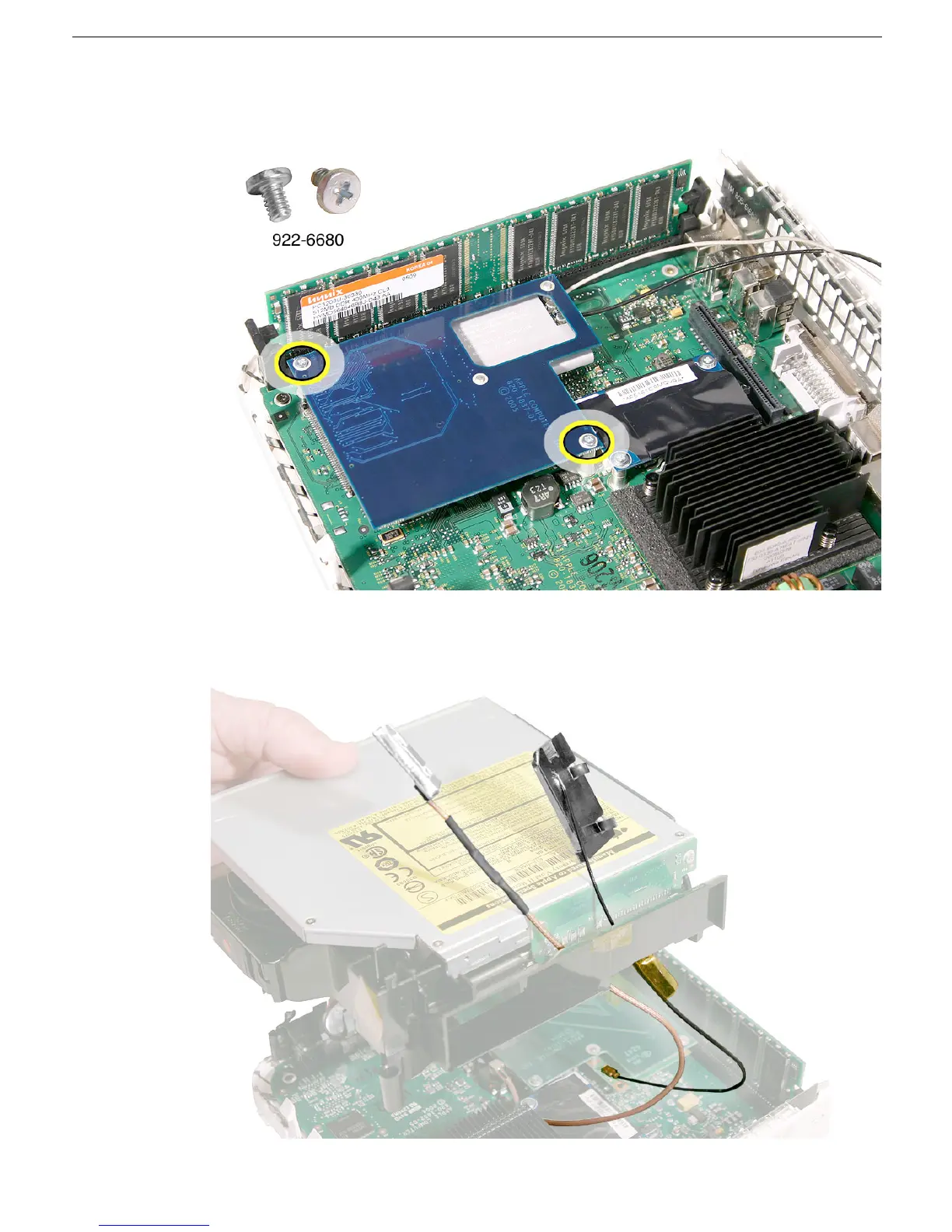

11. Connect the mezzanine board to the logic board connector. Make sure the antennas
are securely connected to the wireless card. Attach the two Phillips screws.
12. Replace the internal frame.
Hold the internal frame over the logic board as shown. Route the AirPort and
Bluetooth antenna cables up through the opening in the internal frame.
