Mac mini Views

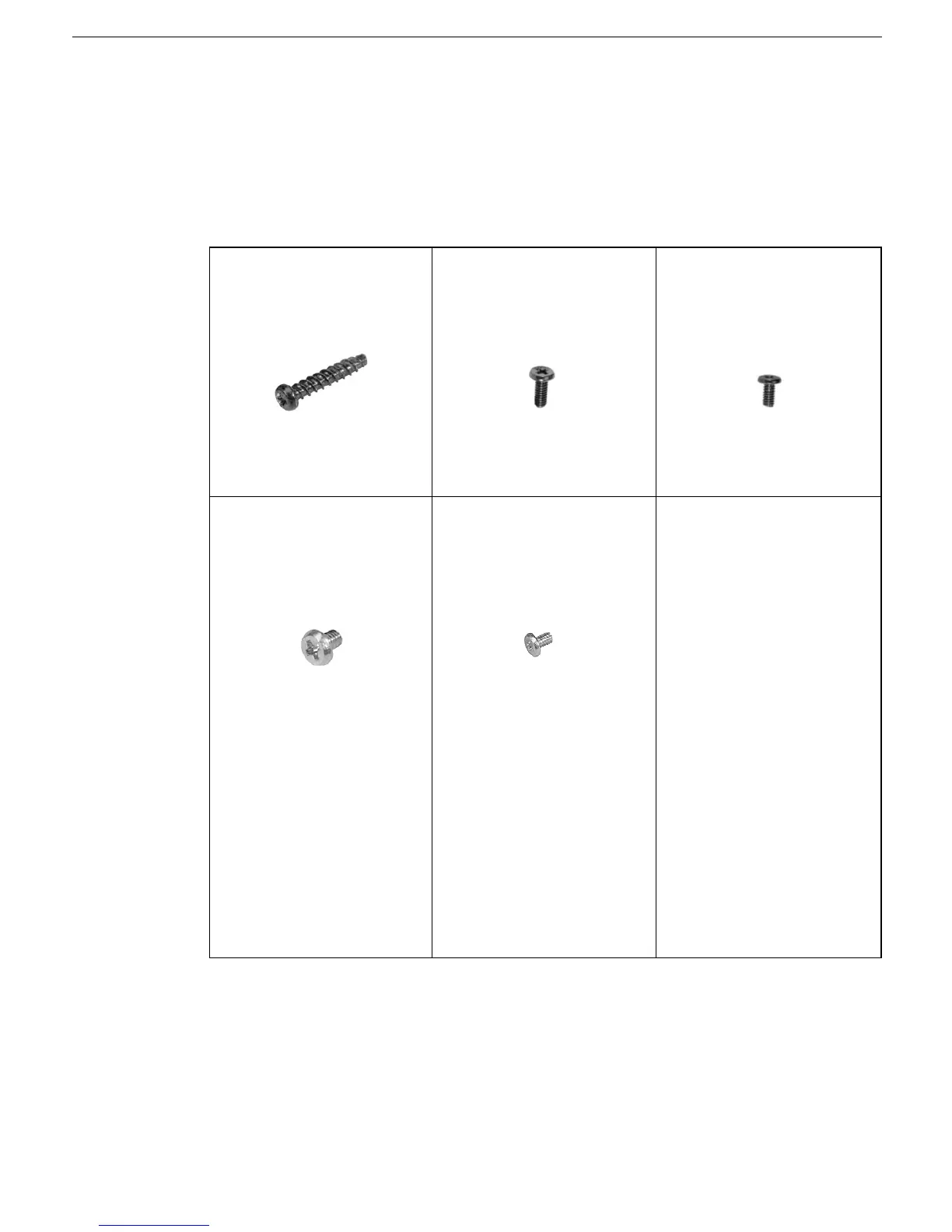

Mac mini Screw Matrix
Mac mini Screw Matrix
Note: These are not to scale.
922-6682
Jeweler’s #0 Phillips
• Fan to internal frame
(3)
922-6745
Jeweler’s #0 Phillips
• Internal frame to logic
board (3)
922-6684
Jeweler’s #0 Phillips
• Logic board (1)
922-6681
#2 Phillips
• Hard drive to internal
frame (4)
922- 6680
Jeweler’s #0 Phillips
• Mezzanine board to
logic board (2)
• Interconnect board to
the optical drive (2)
• Modem to logic board
(2)
• Bluetooth board to the
mezzanine board (2)
• Optical drive to the
internal frame (4)
076-1175 (kit)
Kit includes grommets,
screws, speaker, bracket
Jeweler’s #1 Phillips
• Speaker to internal
frame (4)
922- 6924
• Speaker screw
922- 6925
Speaker shoulder screw
