Mac mini Take Apart
Bluetooth Antenna and Bluetooth Board
Removal Procedure

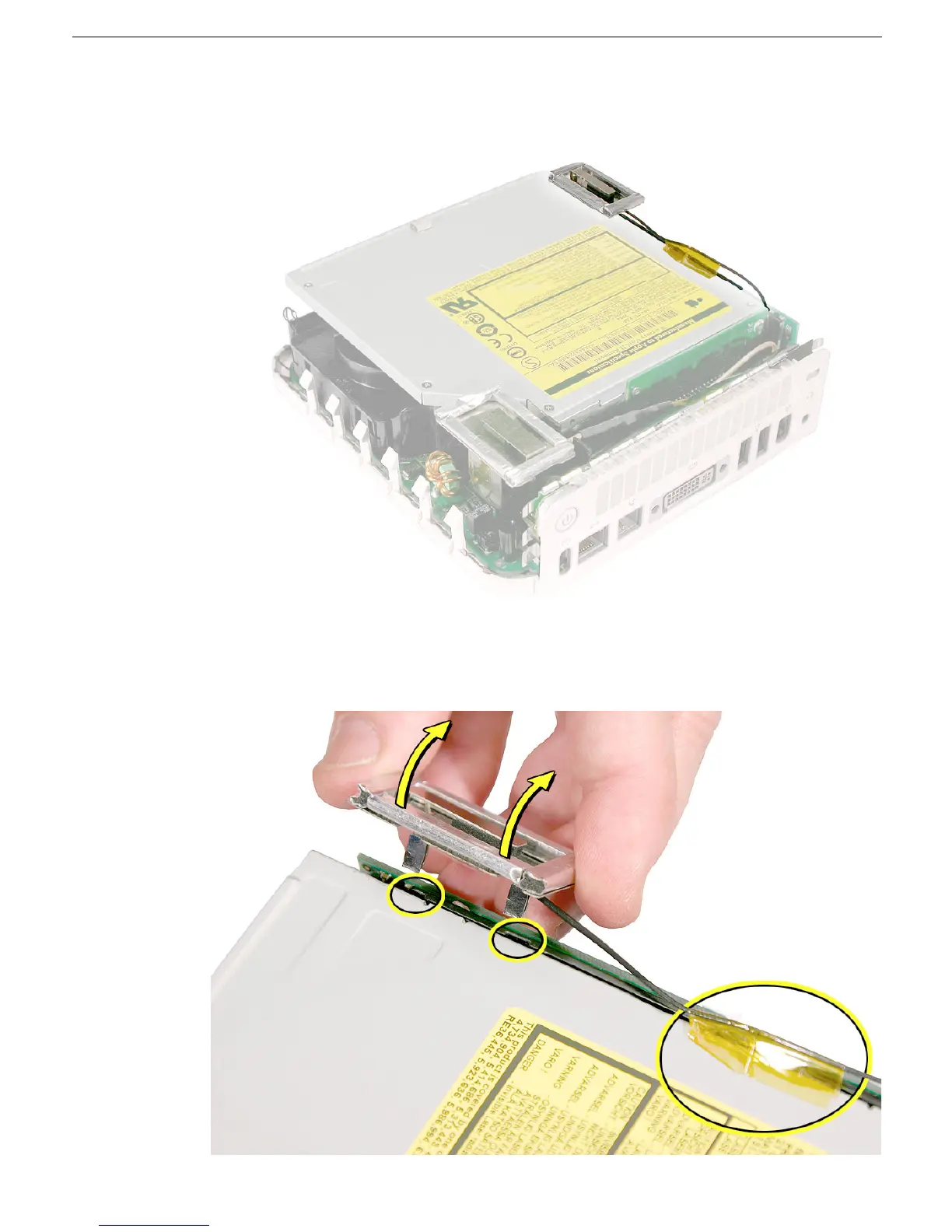

1. Locate the Bluetooth antenna.
2. Pull the Bluetooth antenna up and out of the openings on the plastic rail. Free the
antenna cable from the kapton tape.
Important:
Take care handling the Bluetooth
antenna as a bent or warped antenna will affect Bluetooth connectivity.
