Mac mini Take Apart
Bluetooth Antenna and Bluetooth Board

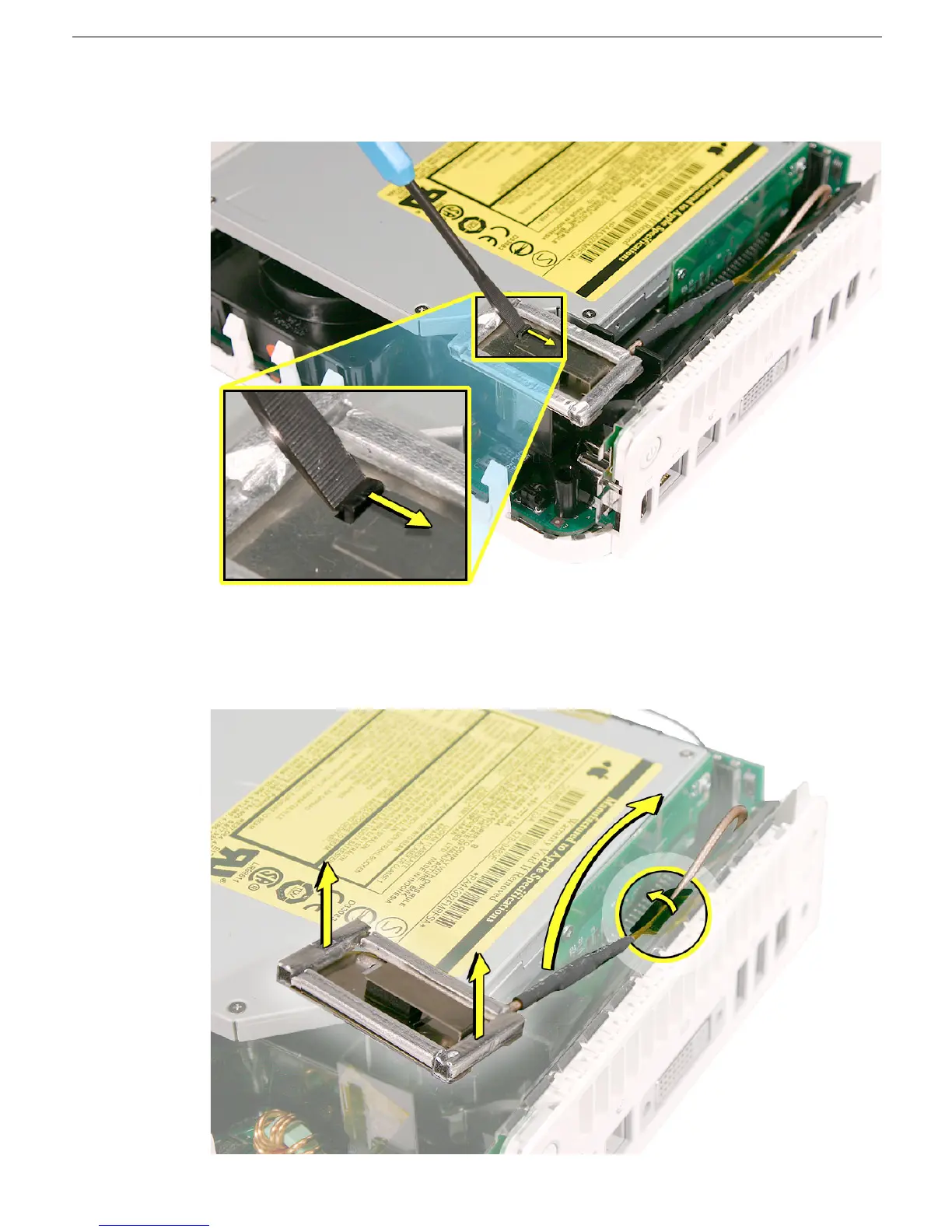

5. Using the black stick push the black latch (see inset) toward the I/O ports to release
the antenna from the internal frame.
4. Carefully lift the antenna up and off the internal frame. Free the antenna from the
kapton tape (circled).
Important:
Take care handling the AirPort antenna as a bent or
warped antenna will affect AirPort connectivity.
