Mac mini Take Apart -
35
Bluetooth Antenna and Bluetooth Board

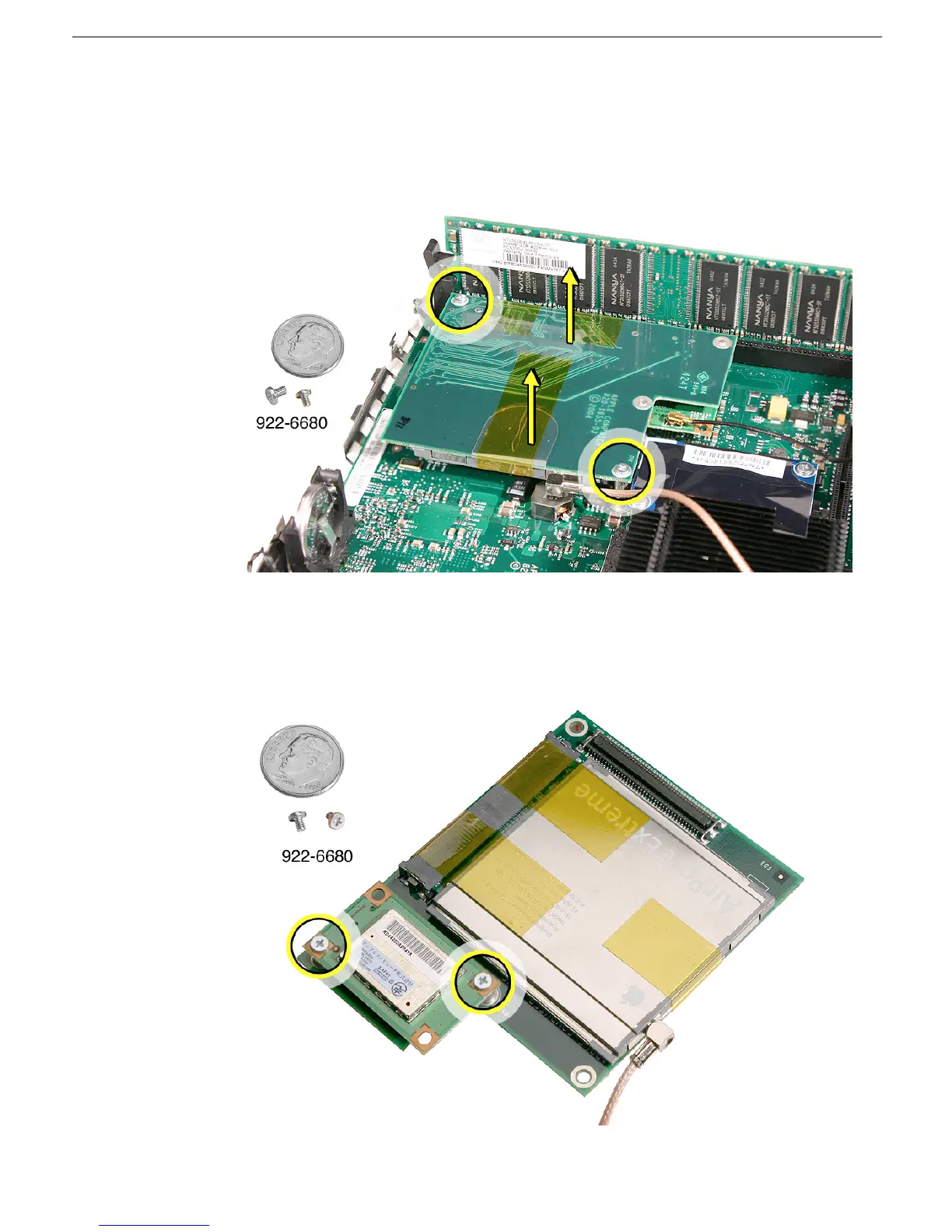

13. Remove the two screws on the mezzanine board. Lift the mezzanine board straight up
and off the logic board connector.
Caution:
The AirPort antenna cable is still attached
to the mezzanine board. Remove the AirPort antenna cable if required to perform the
repair.
14. Turn over the mezzanine board. With a jeweler’s #0 Phillips screwdriver remove the
two screws on the Bluetooth board. Pull the Bluetooth board off the connector on the
mezzanine board.
