Mac mini Take Apart - 59
Internal Frame

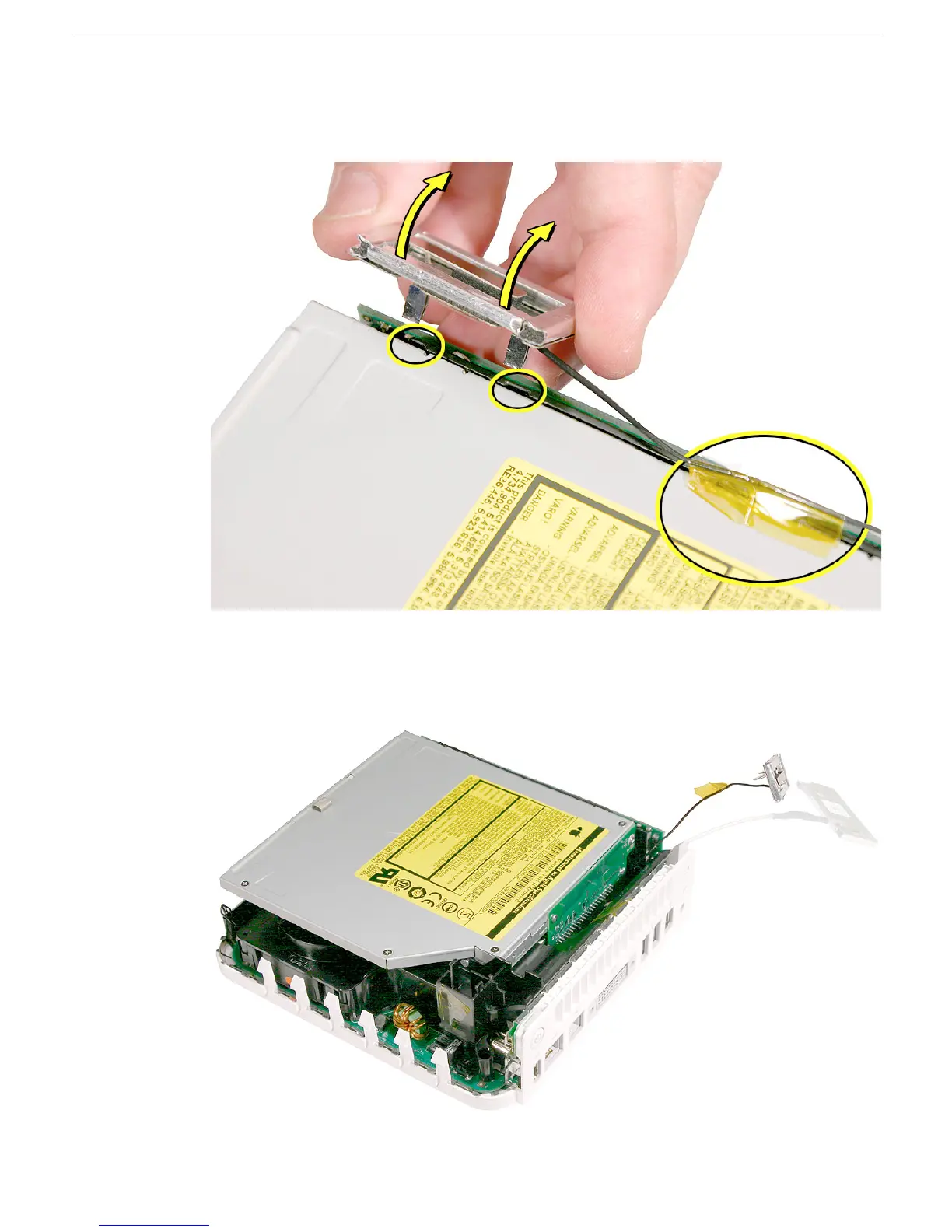

3. Pull the Bluetooth antenna up and out of the openings on the plastic rail. Free the
antenna cable from the kapton tape. Important: Take care handling the Bluetooth
antenna as a bent or warped antenna will affect Bluetooth connectivity.
4. Set the Bluetooth antenna off to the side and out of the way. Note: The Bluetooth
board and antenna cable are connected to the mezzanine board located under the
internal frame.
