92 - Mac mini Take Apart
Interconnect Board
Replacement Procedure

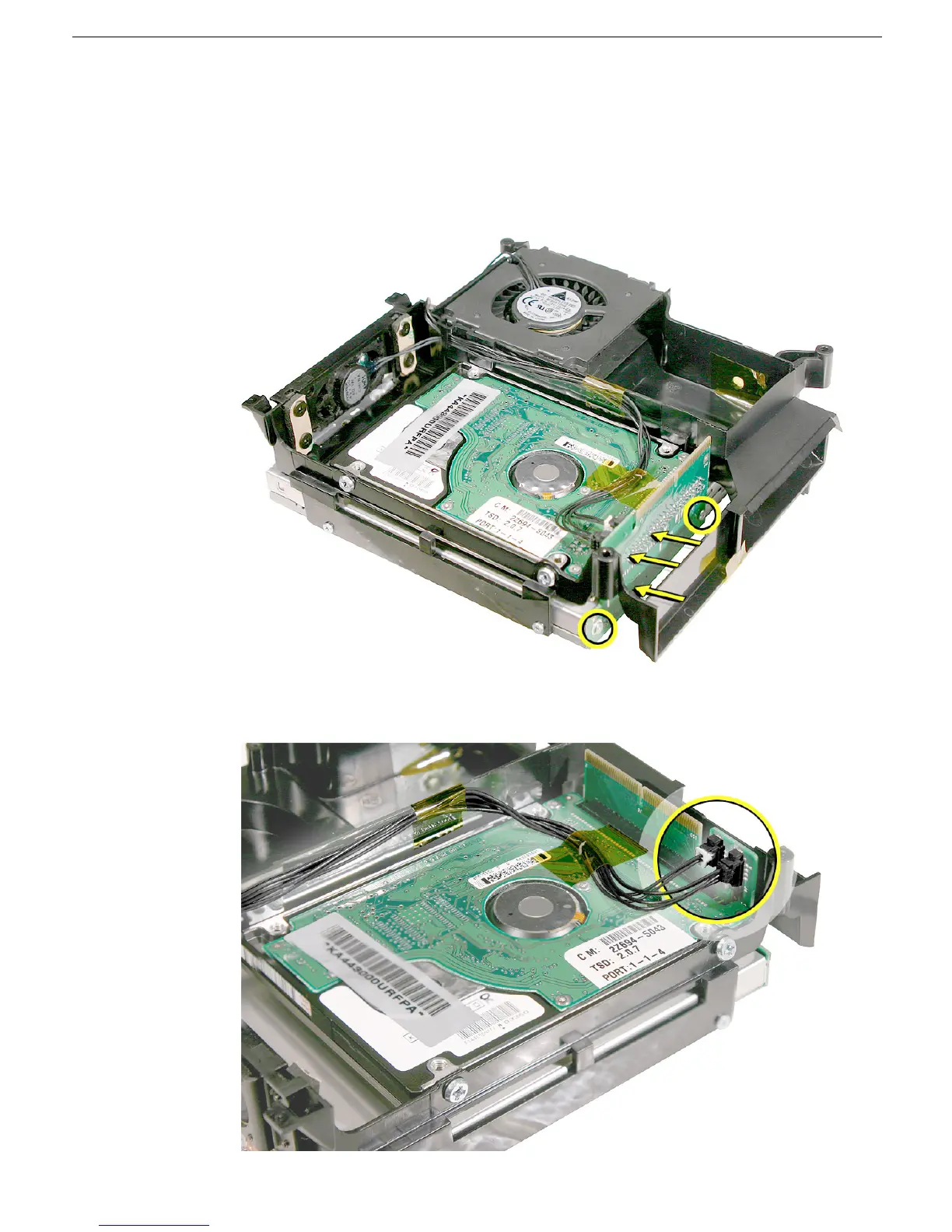

1. WIth the gold pins on the interconnect board facing up, press the interconnect board
onto the hard drive and optical drive connectors. Replace the optical drive screws
(circled). Caution: Be careful not to bend the hard drive pins when connecting the
interconnect board.
2. Connect the speaker cable (on the left) and fan cable (on the right) to the interconnect
board.
