Mac Pro (Early 2008) Take Apart — USB Cable 101
Procedure

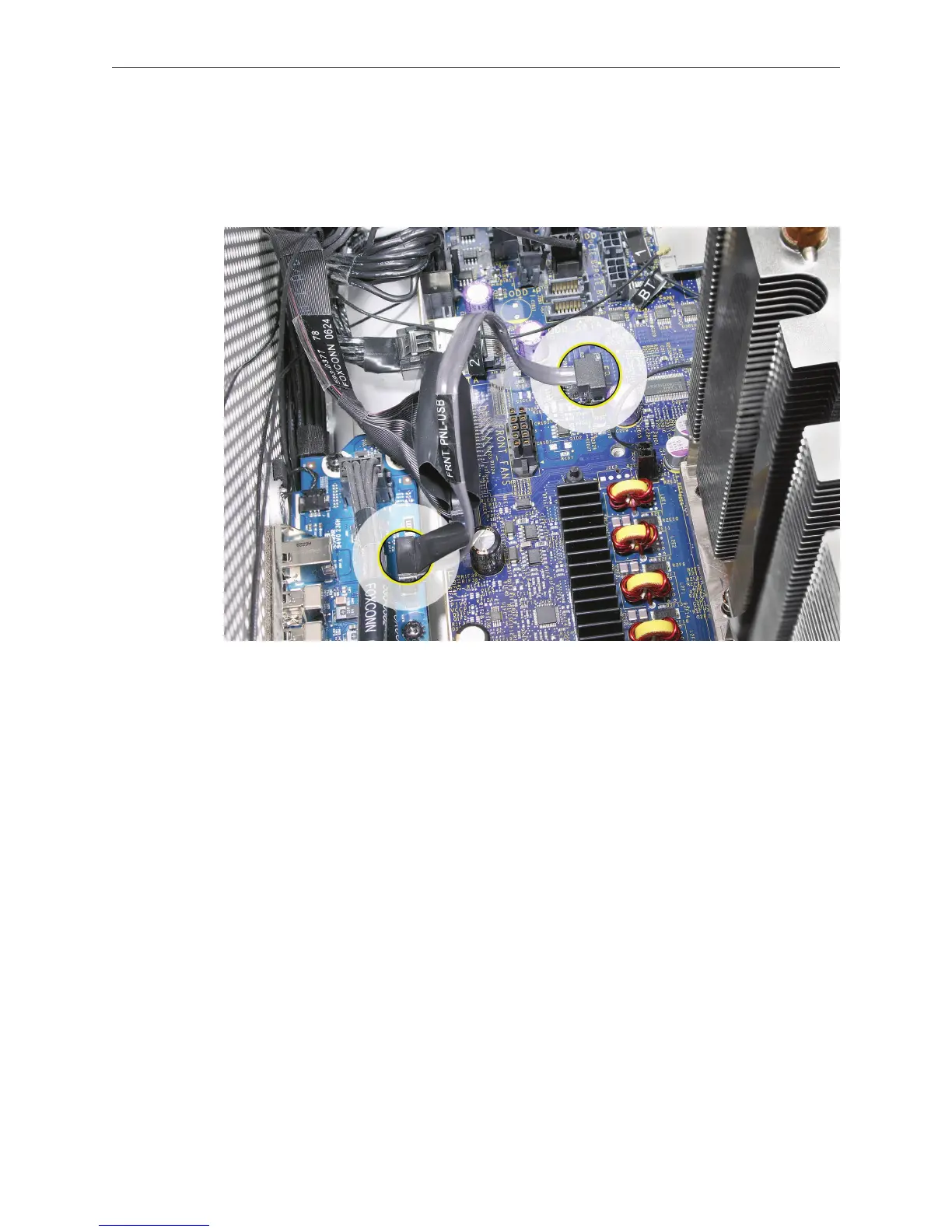

Disconnect the USB cable from connector J201 on the front panel board.1.
Disconnect the USB cable from connector J2D1 on the logic board. 2.
Remove the cable from the enclosure.3.
