Mac Pro (Early 2008) Take Apart — Processor Heatsinks for 3.2 GHz Processors 81

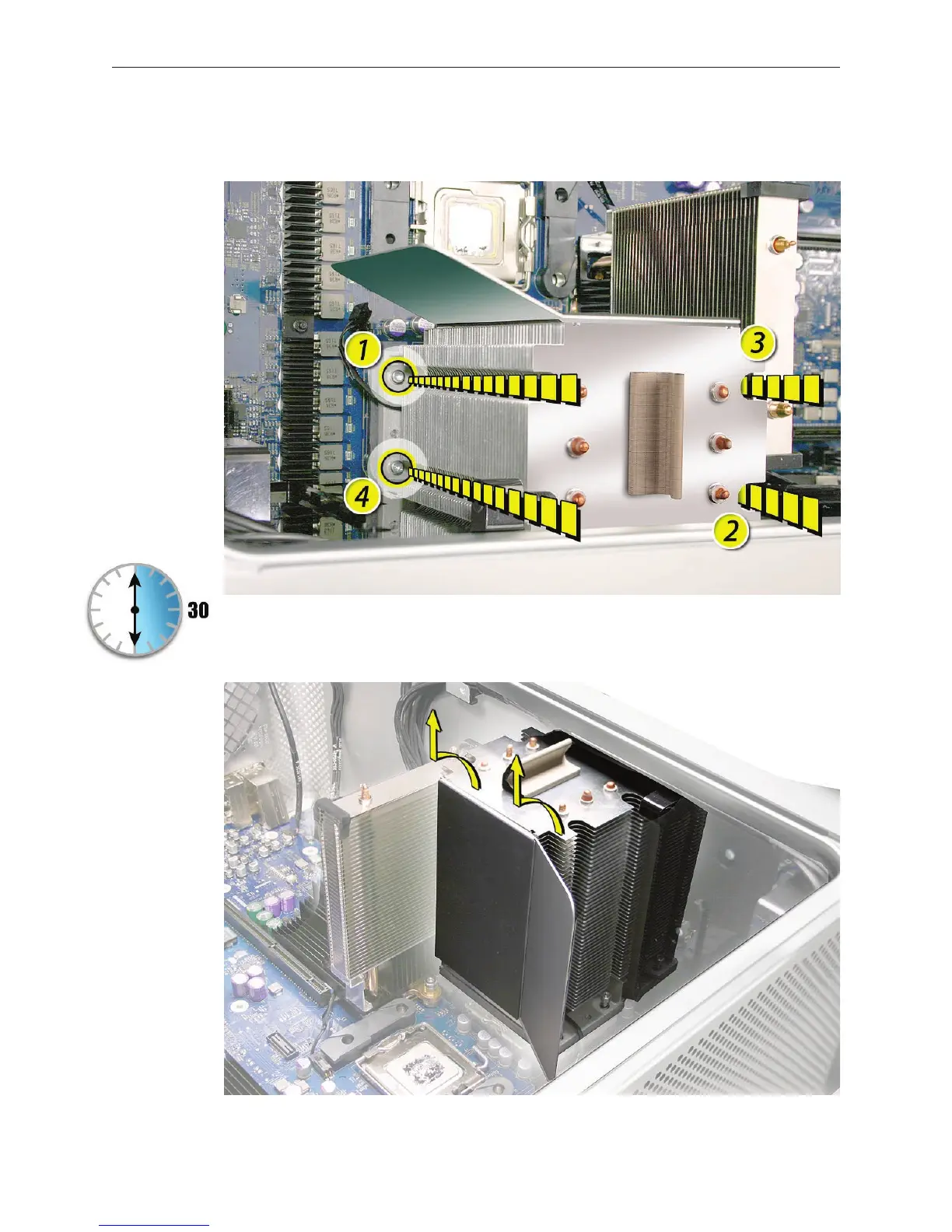

Using a long-handled, magnetized 3 mm athead hex screwdriver, loosen the four captive 5.
mounting screws for the lower processor heatsink in the order indicated below.
6. Carefully tilt the heatsink so that it clears the bottom lip of the enclosure and then lift the
heatsink out of the computer.
IMPORTANT:
Remember that you
cannot leave the
heatsink separated
from either the upper
or lower processor for
more than 30 minutes..
