Microprocessor Board and Heat ExchangerTake Apart
PowerBook (FireWire)
11

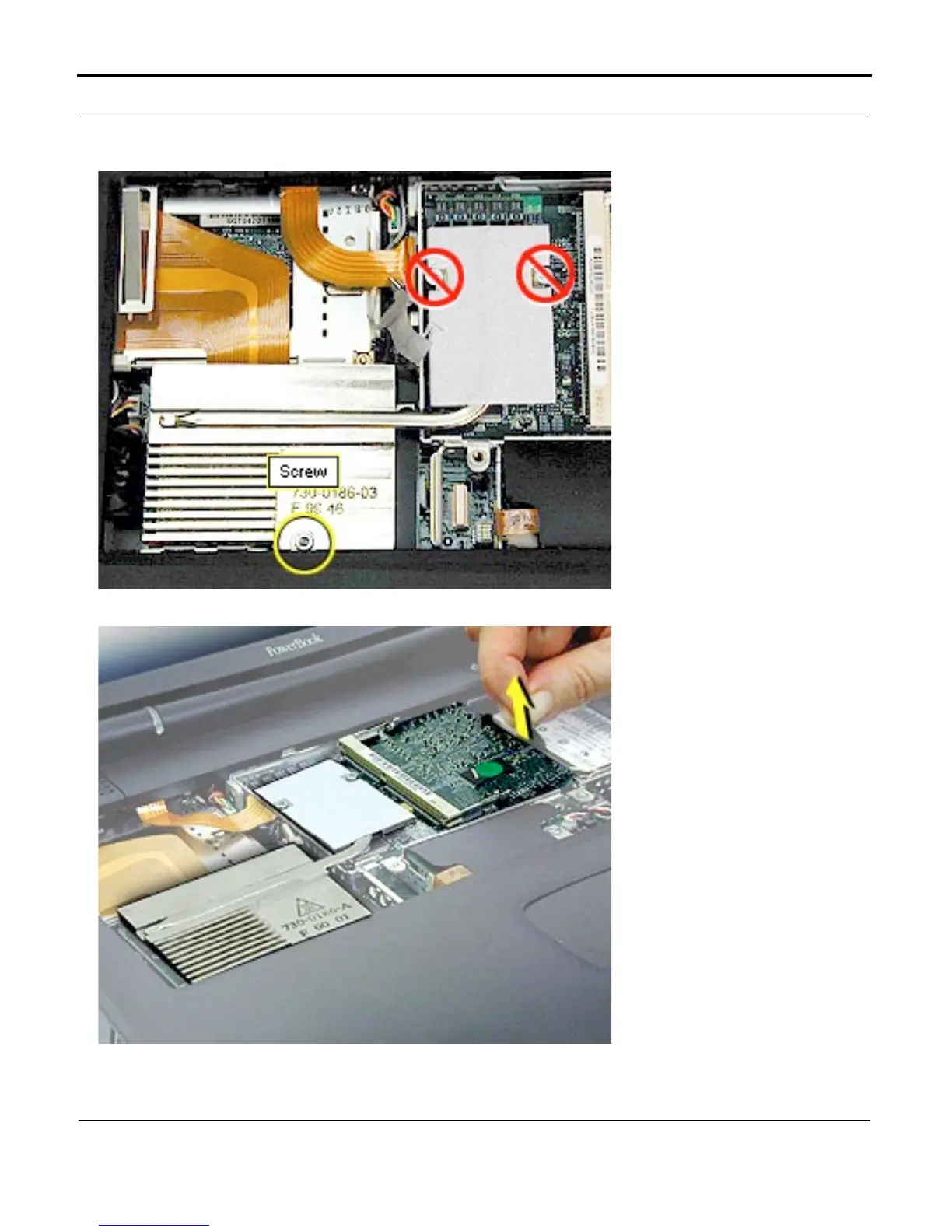

2. Remove the long
Phillips screw from
the bottom left side of
the heat exchanger.
Important:
Do not remove
the two screws holding the
heat exchanger to the
microprocessor board
unless you are replacing
the microprocessor board.
3. Pull up on the tab on
the right side of the
board to release it
from its connector. The
connector is along the
bottom right side of the
board.
