Microprocessor Board and Heat ExchangerTake Apart
PowerBook (FireWire)
12

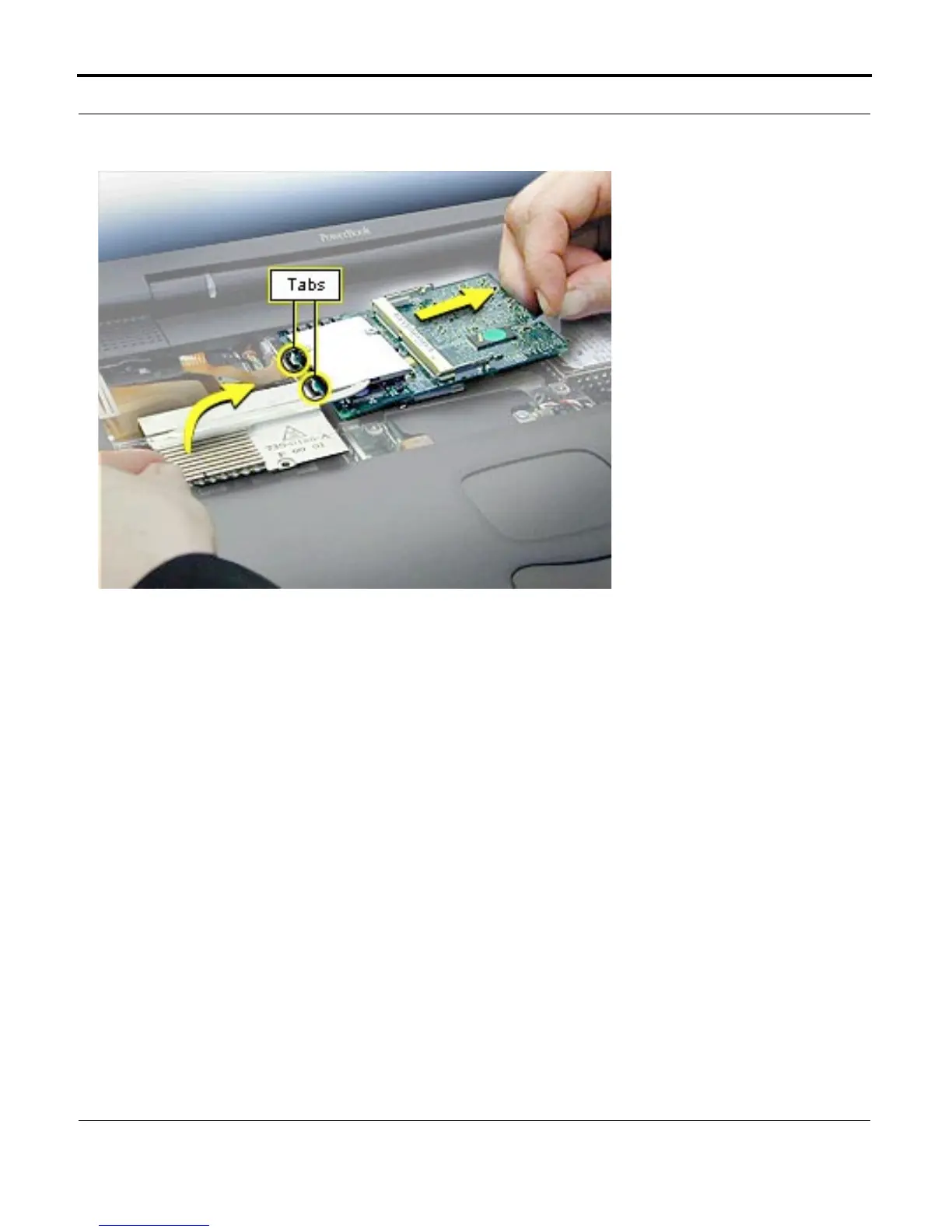

4. Lift up on the bottom
left corner of the heat
exchanger and lift it up
with the
microprocessor board.
5. Pull the board to the
right until the tabs on
the left side of the
board clear the slots in
the stiffener.
Warning:
Do not flex these
pieces or you could break
the heatpipe or the plastic
frame around the
microprocessor.
