I/O Logic BoardTake Apart
PowerBook (FireWire)
42
PCMCIA Cardcage
Note: The PCMCIA cardcage
consists of two pieces that
can come apart. To avoid
alignment problems, it is
important not to separate
the two pieces.

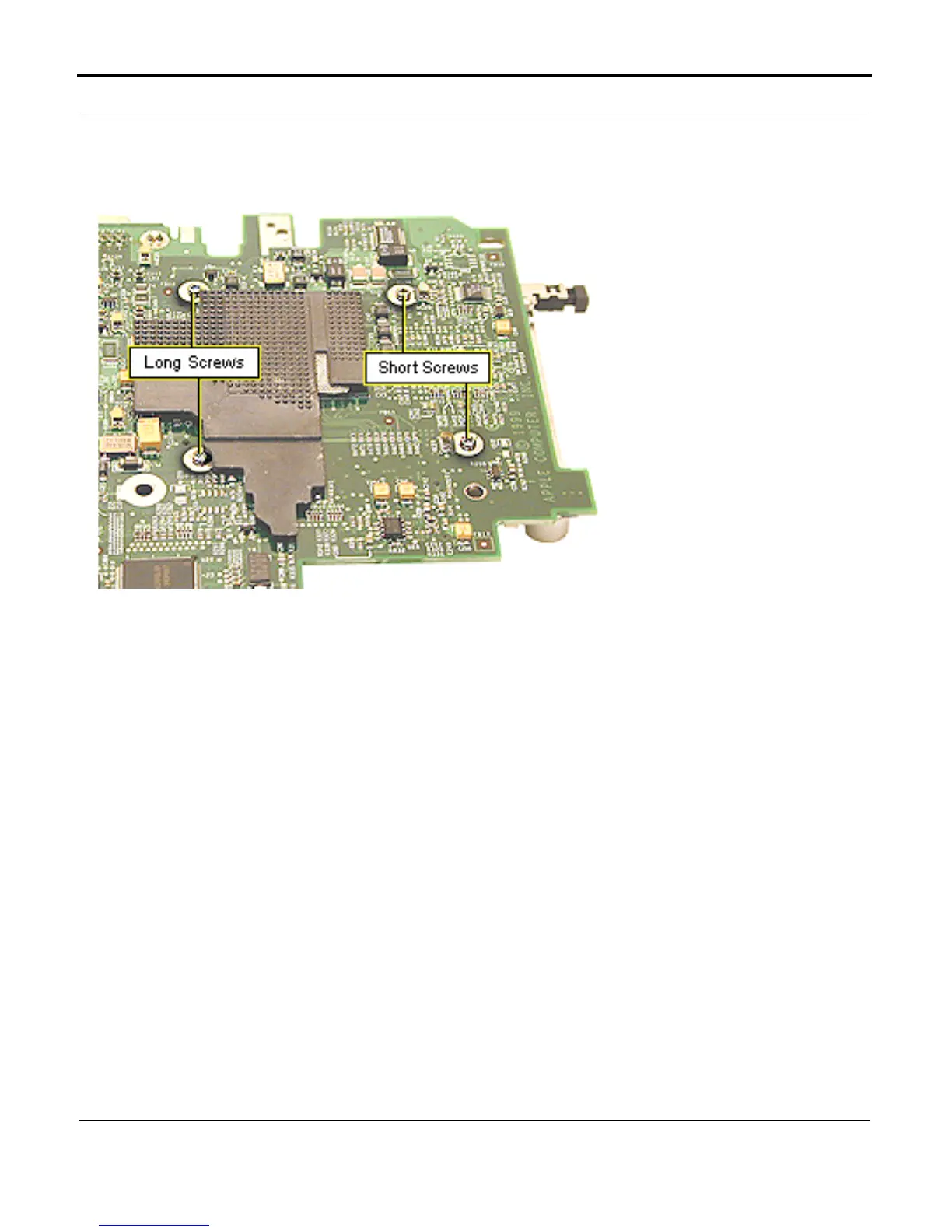

1. Turn the I/O logic
board over and remove
the four Phillips
screws holding the
PCMCIA cardcage on.
Replacement Note: The two
short screws go in the
holes near the outside edge
of the board.
2. Turn the board right-
side up and use a flat-
blade nylon tool to
separate the cardcage
from its connector.
3. Grasp the bottom edges
of the cardcage and pull
straight up. Do not pull
on the top edges of the
cardcage or the
cardcage could come
apart.
