Apple Processor - Removing the Installed Processor

Xserve Processor - 4
Removing the Installed Processor

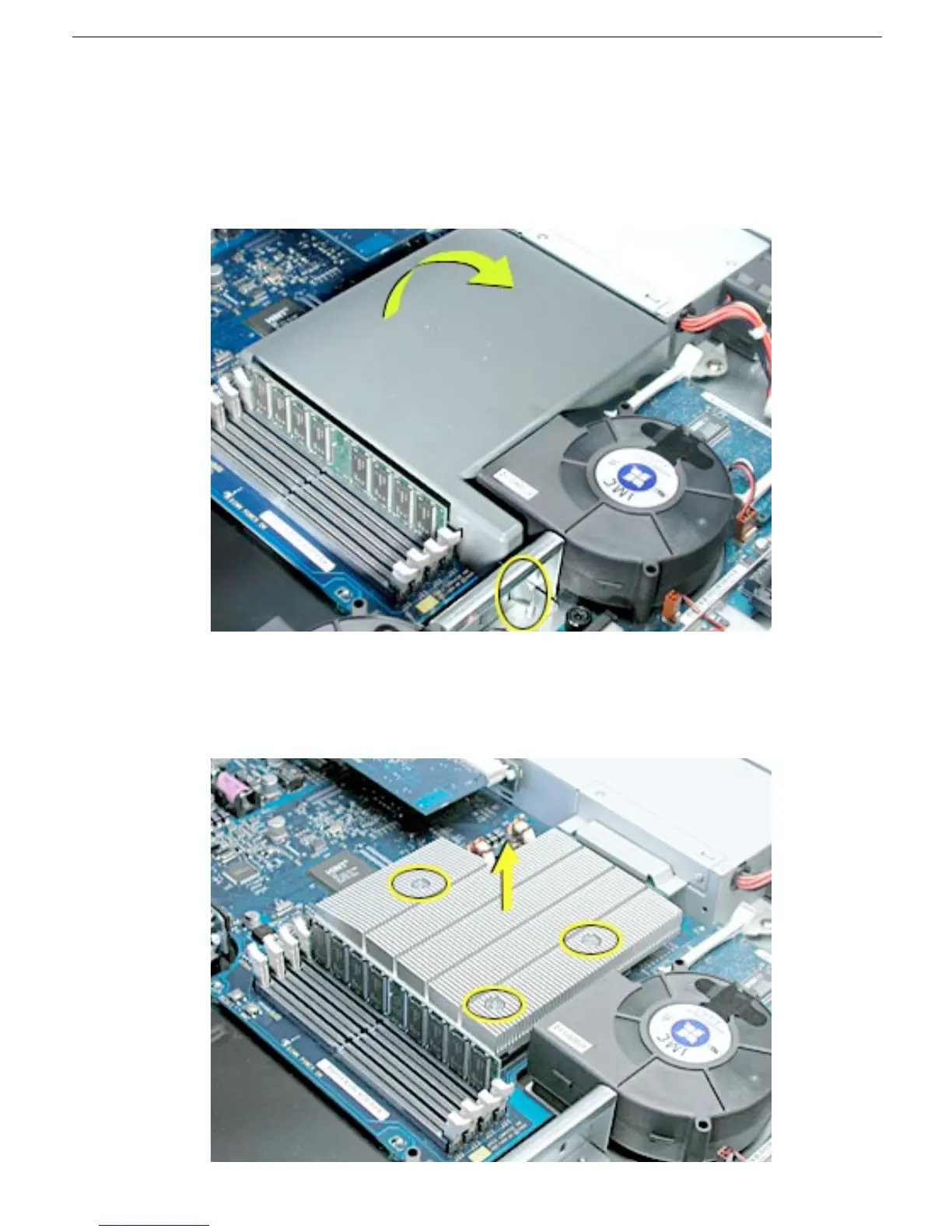

1. Release the latch on the heatsink duct (Figure 3) , and remove the duct from the
server.
Figure 3
2. Release the three captive screws that secure the heatsink. (Figure 4)
3. Lift the heatsink straight up and remove it from the server.
Figure 4
