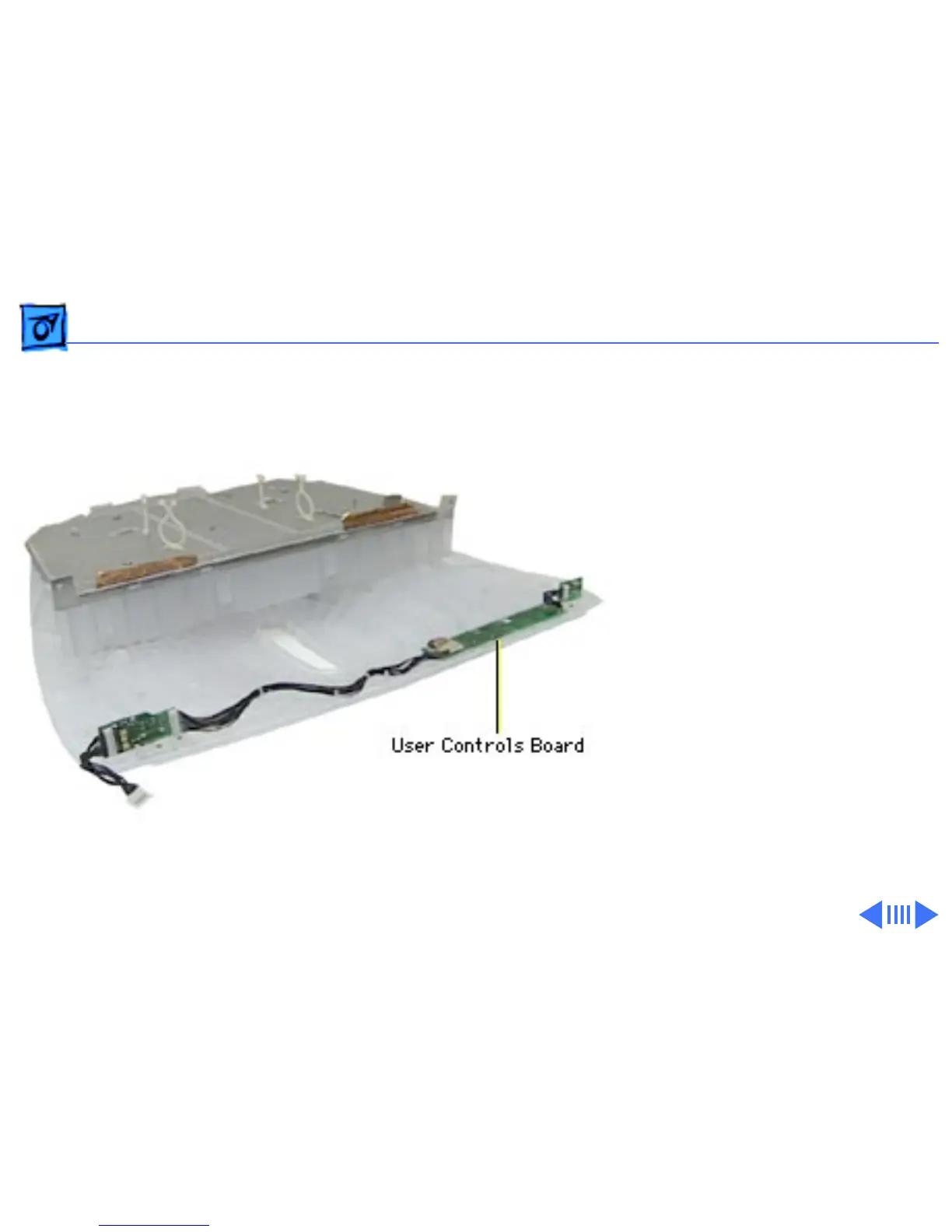

Take Apart User Controls Board - 96
User Controls
Board
Before you begin,
Remove USB cover
Remove rear housing
Discharge CRT and
remove anode cap
Remove back EMI shield
Remove top EMI panel
Remove power board
Remove main deflection
board
Remove CRT/video board
Remove tripod stand
Remove bottom housing
