Apple Studio Display - Page 68

Take Apart Power Board - 42

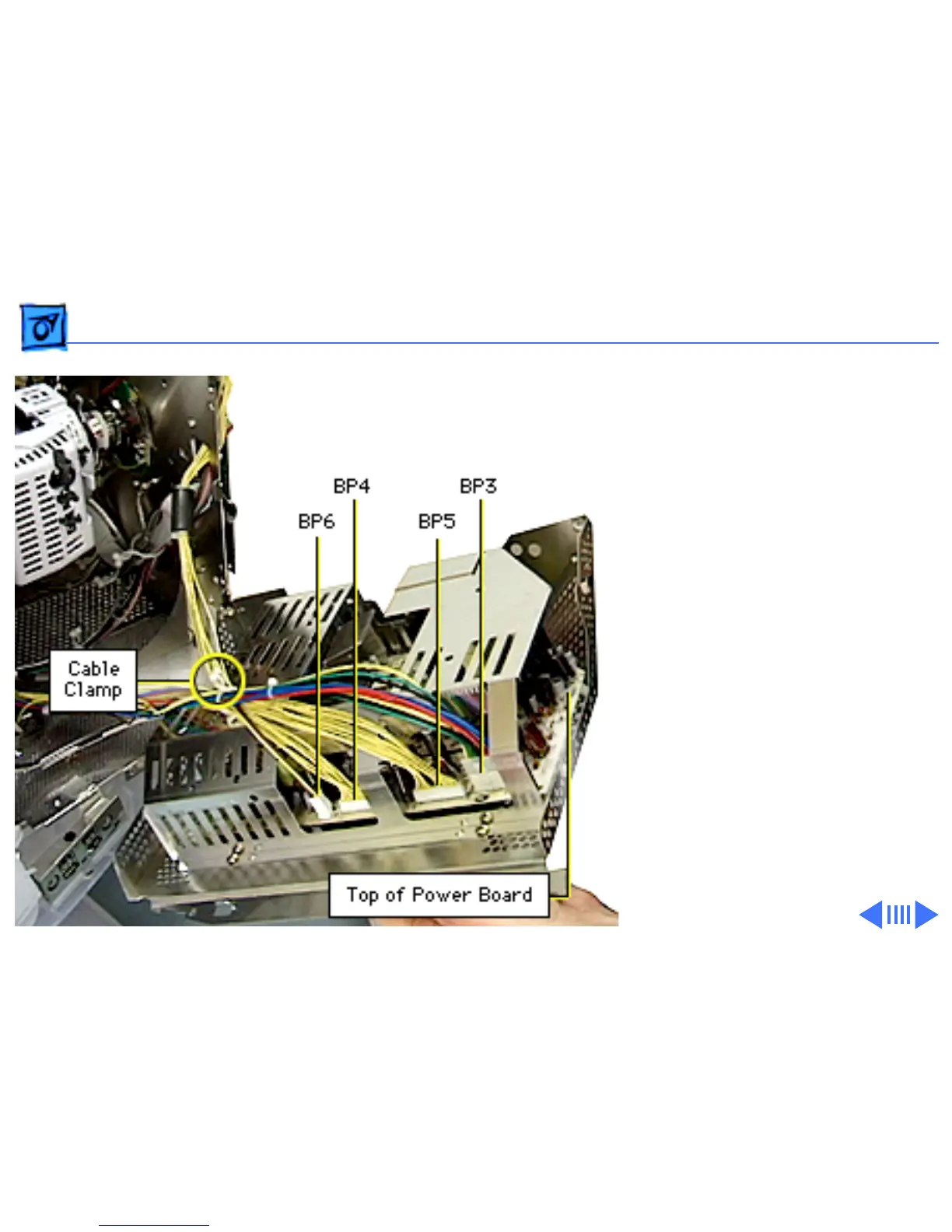

3 Open the cable clamp,
and disconnect the
following cables:
• 2-pin locking
connector from BP6
• 9-pin connector from
BP4
• 12-pin connector
from BP5
• 10-pin locking
connector from BP3
Replacement Note:
Depending on when the
unit was made, the
power board can have up
to three cable clamps.
