Apple Studio Display - Page 72

Take Apart Main Deflection Board - 46

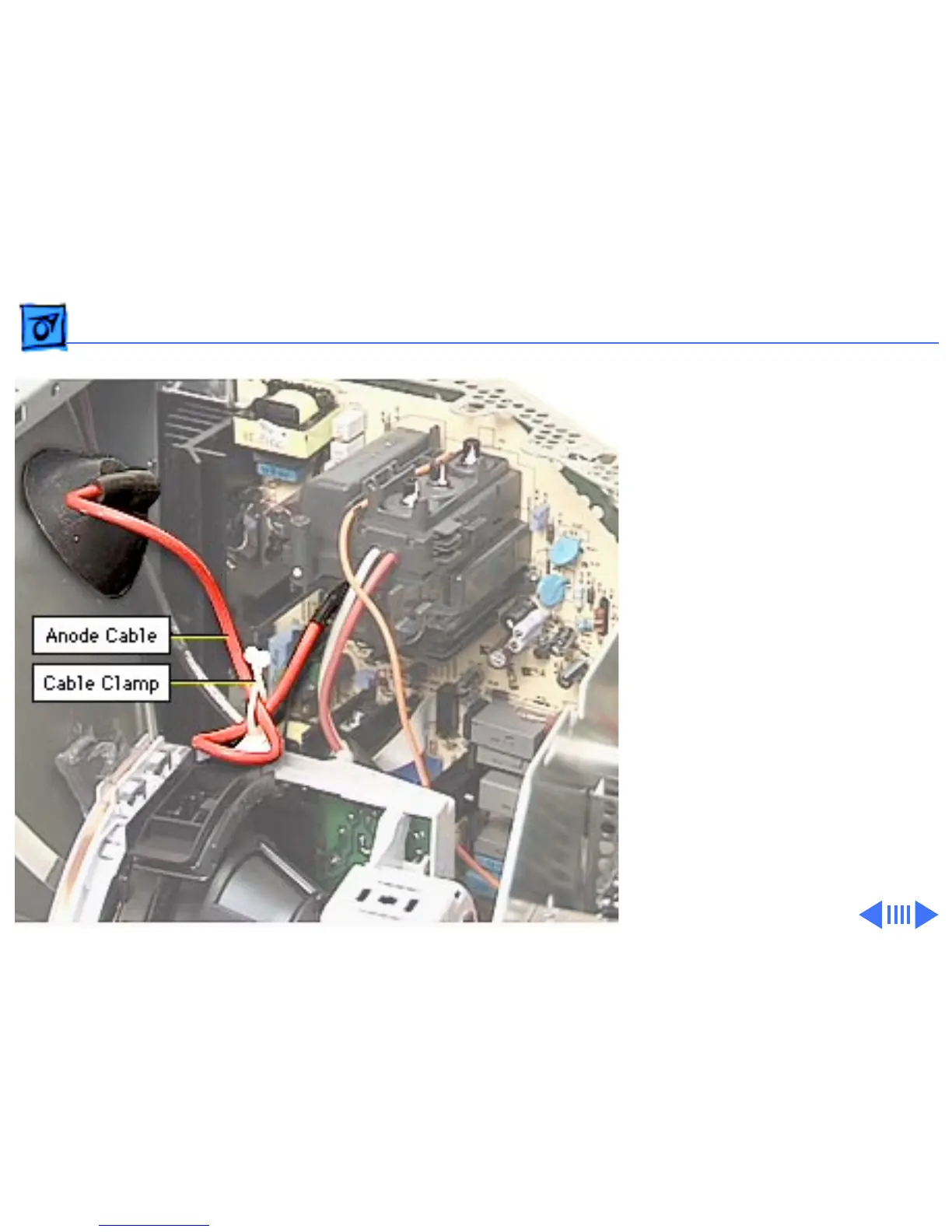

1 Open the cable clamp
that secures the anode
cable to the plastic yoke
on the CRT.
2 Refer to “CRT/Video
Board” in this chapter to
remove the red and white
focus wires from the
CRT socket.
