Apple Studio Display - Page 89

Take Apart CRT/Video Board - 63

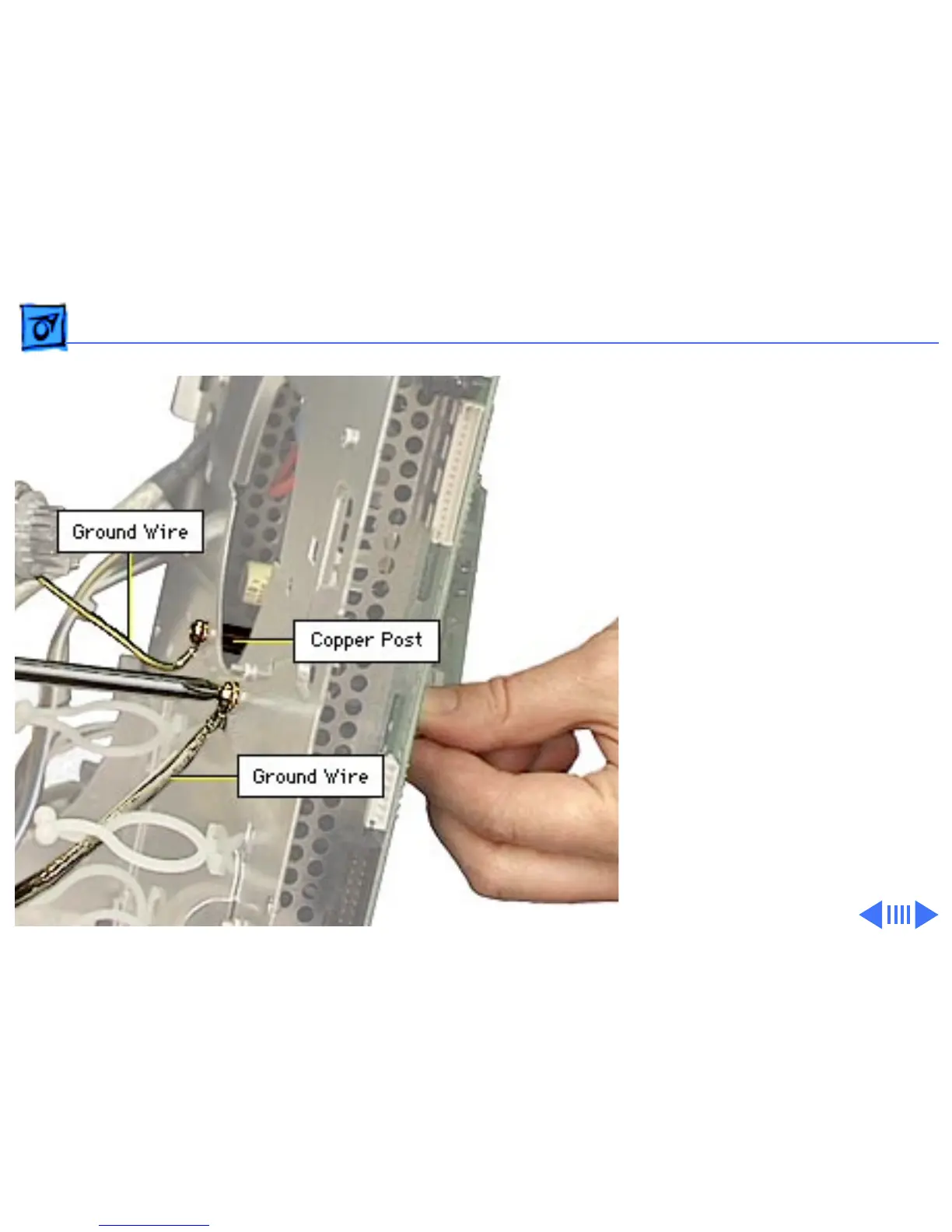

11 At the two copper posts,
remove
• Phillips screw that
connects the ground
wire lug (from the
CRT yoke) to the
shield
• Phillips screw that
connects the shielded
ground cable lug
(from the CRT ground
strap) to the shield
