18 -
Studio Display (17" ADC) Take Apart

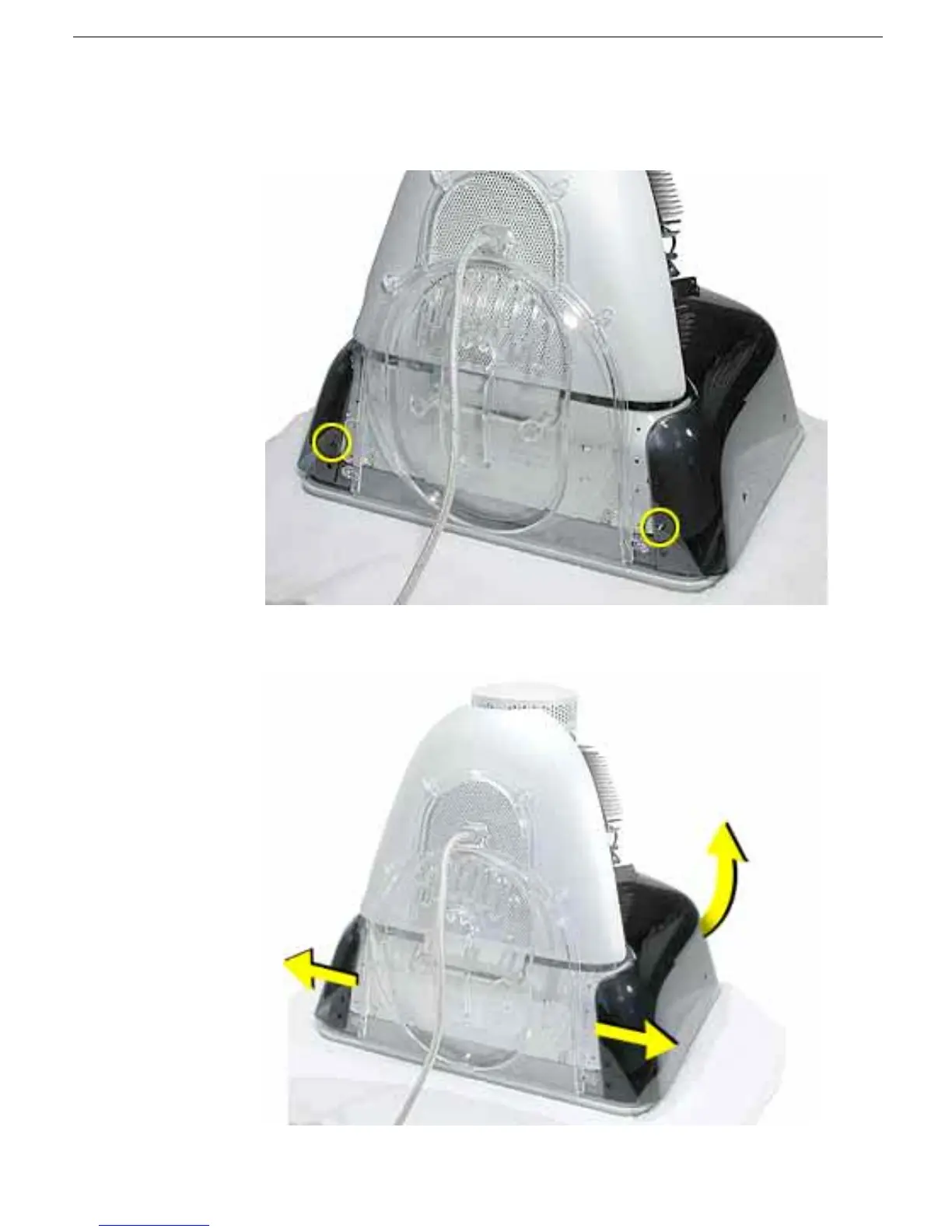

Remove CRT Shroud
Procedure
1. Remove two screws from the CRT shroud.
2. Bow out slightly the bottom of the shroud and remove it from the CRT as shown.
