40 - Studio Display (17" ADC) Take Apart
CRT
Procedure

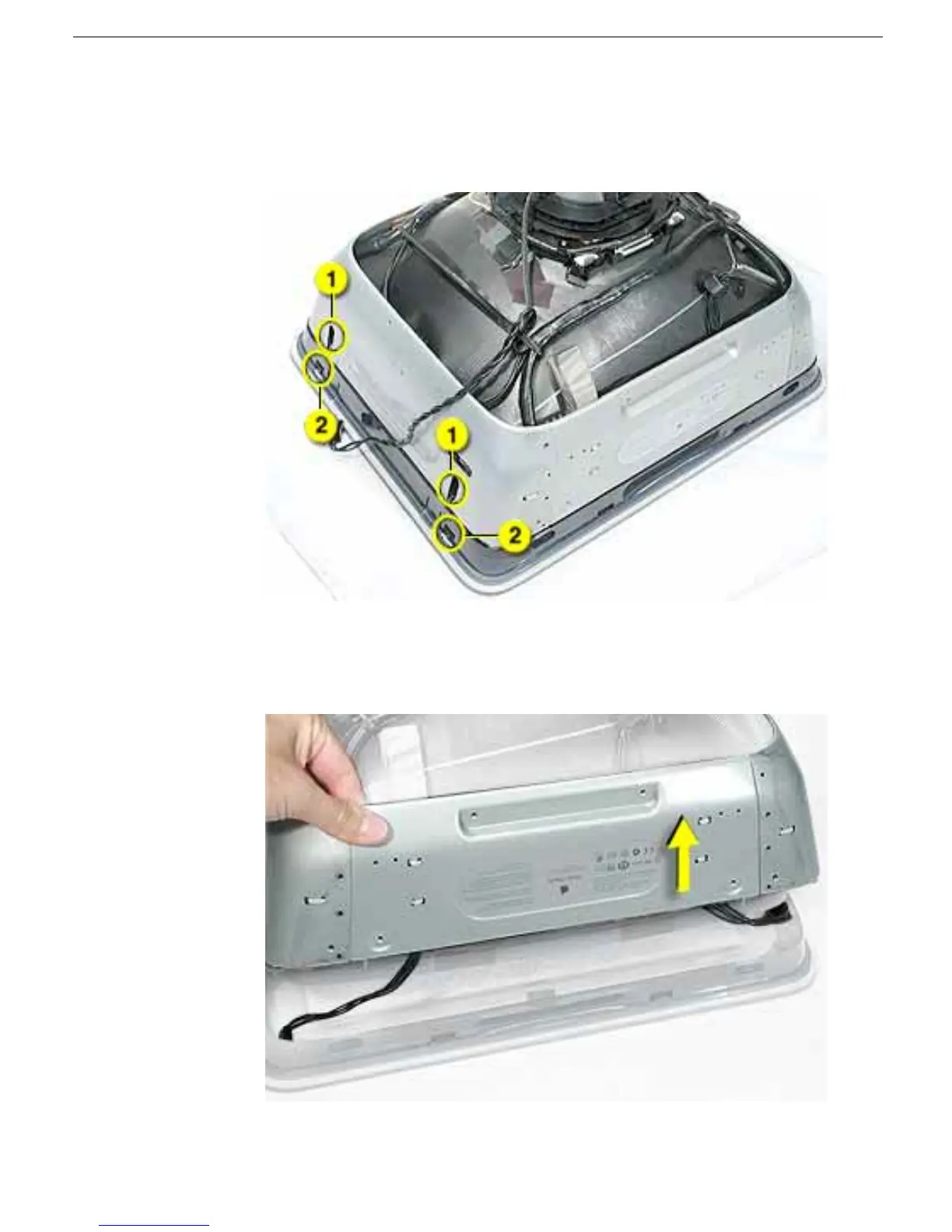

1. Remove four screws (1) from the metal degauss frame. Remove four more (black)
screws (2) from bezel mount and degauss frame.
2. Lift slightly the bottom side of the degauss frame and disconnect the power button
cable and the launch button cable. Remove the CRT from the front bezel assembly.
