Installation and Service Manual – Under-the-Counter Point of Use 5 Stage Reverse Osmosis System
Copyright © 2014 Applied Membranes, Inc.
All Rights Reserved.
Page 10

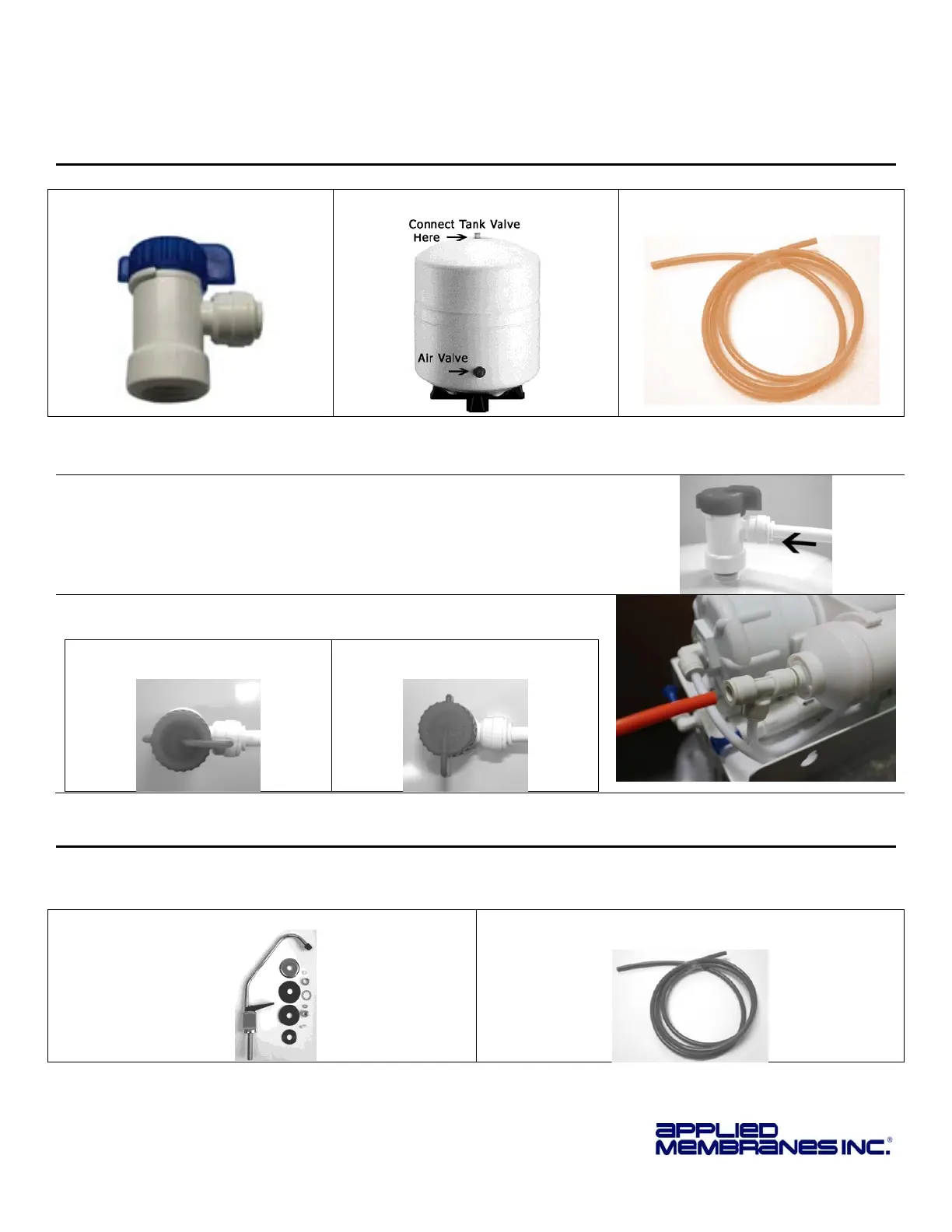

Mounting the Tank Ball Valve & Connecting the Tank
For this step you will need:
Tank Valve Assembly
Storage Tank Orange Tubing
Note: Do not tamper with the air valve on the low side of the storage tank. It has been factory charged and
covered with a black cap.
1. Locate the in/out port on the top of the tank. Connect the tank ball
valve by threading onto the fitting. Do not over-tighten.
2. Insert the tubing into the quick connect fitting on the ball valve.
3. Connect the other end of the orange tubing to the tee on the inlet
of the post-carbon filter.
Tank Valve in OPEN Position
Tank Valve in CLOSED
Position
Faucet Installation
For this, step, you will need:
o Wrench
o
Variable speed drill w/ ⅛” and
7
/
16
” drill bits
Faucet Assembly Kit
Yellow Tubing
