About Your RO System

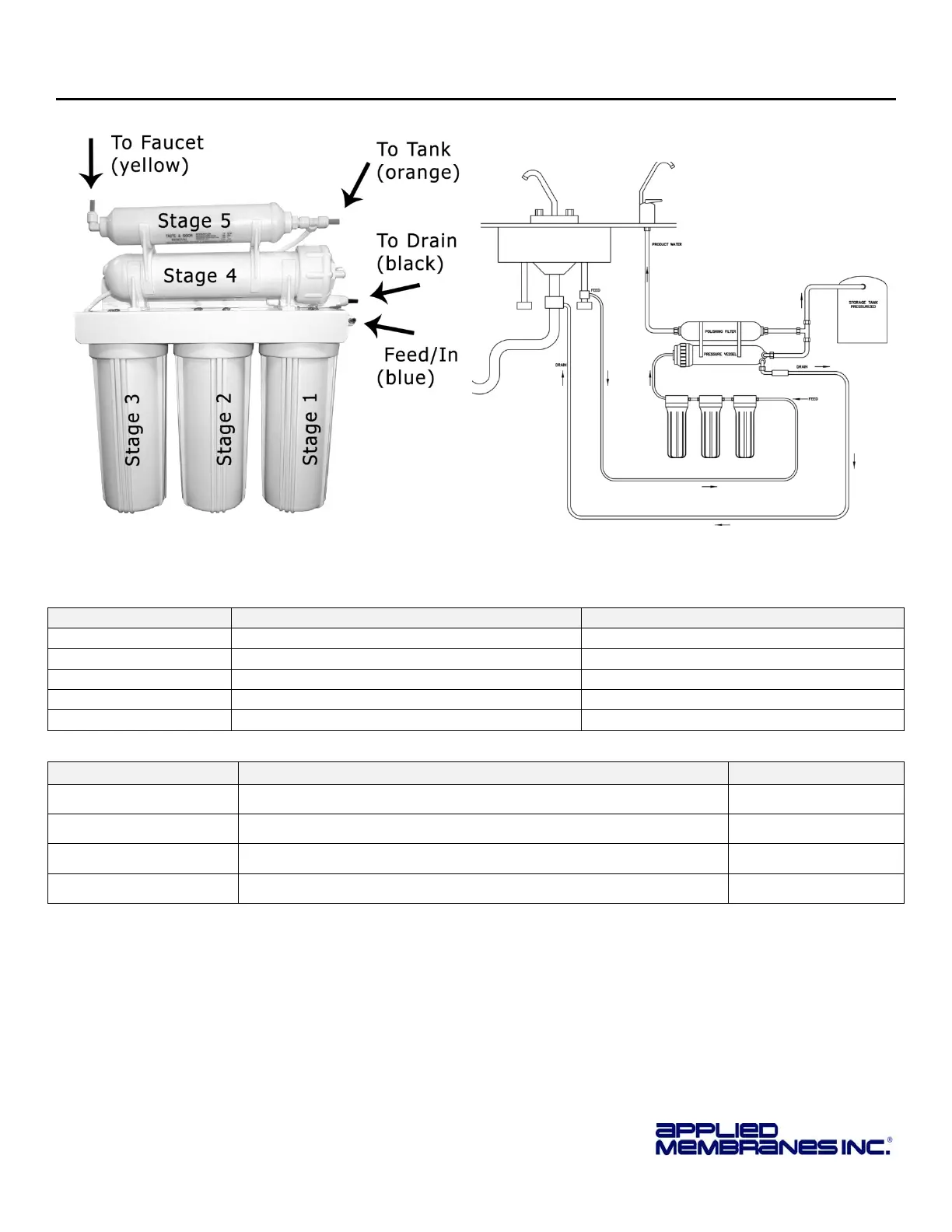

Stages & Connection Points Installation Diagram
5 Stage Reverse Osmosis Water System
Stage Description Replacement Schedule
1
st
Stage Sediment pre-filter Every 3-6 months
2
nd
Stage Carbon block pre-filter Every 3-6 months
3
rd
Stage Carbon block pre-filter Every 3-6 months
4
th
Stage Reverse osmosis membrane Every 12 months
5
th
Stage Post carbon filter Every 3-6 months
Connection Location Tubing Color
System Feed (IN) From feed line to port at the entrance of the first filter housing. Blue
Reject Water From the flow restrictor to the drain saddle. Black
Product Water – Tank From the tee on the post-carbon inlet to the tank inlet/outlet Orange
Product Water – Final From the post-carbon outlet to the faucet Yellow
