APRILIA MOJITO 125 Workshop Manual

125 - 150 CC VERSION
3 - 24
MOJITO 50 - 125 - 150
3.4. ENGINE

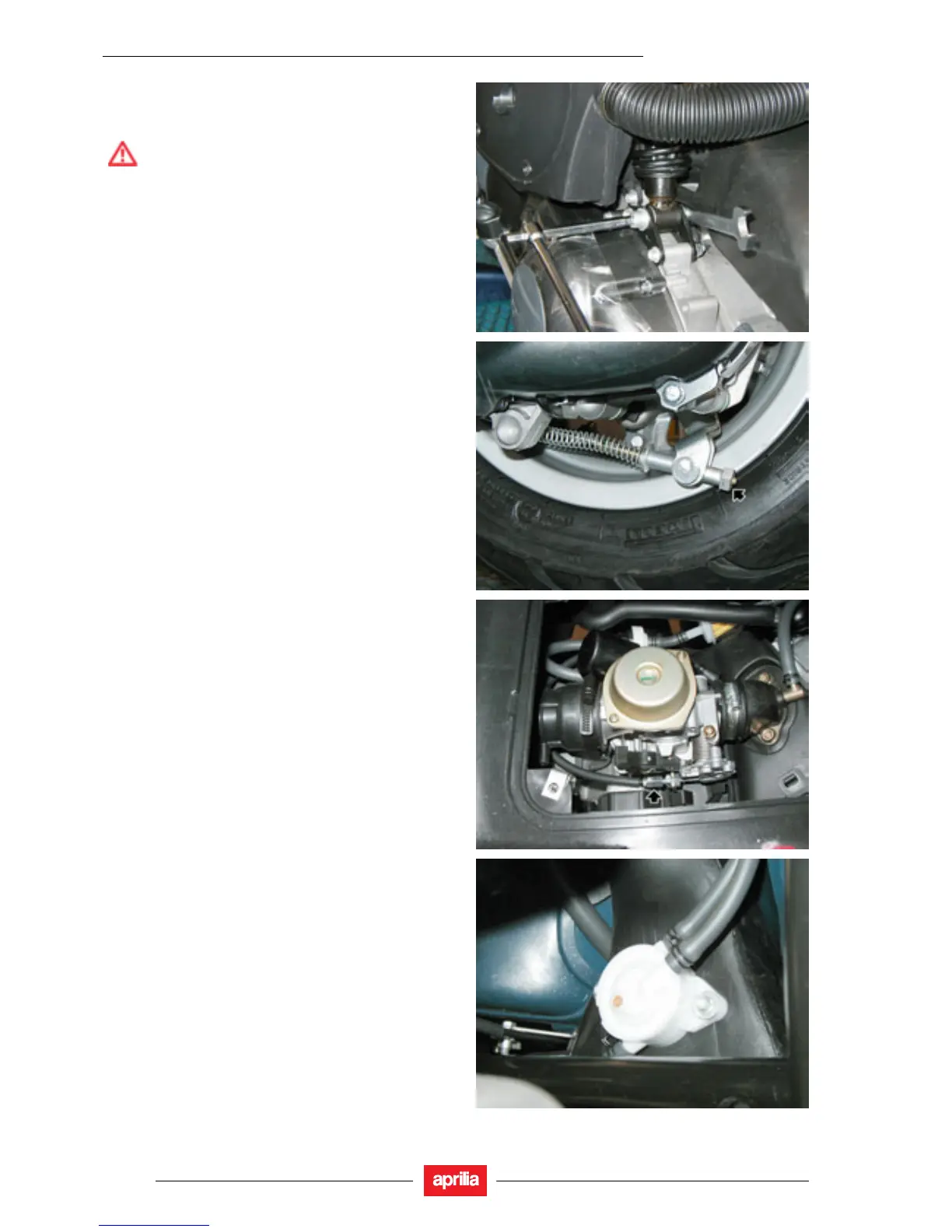

3.4.1. REMOVING THE ENGINE
WARNING
Before proceeding with these operations, re-
member that the engine must be removed
downwards from the frame. Arrange the neces-
sary equipment accordingly.
• Remove the rear fairing – see 3.5.7 (REMOVING THE
REAR COWLING).
• Unscrew and remove the lower bolt that fixes the shock
absorber to the engine.
• Unscrew and remove brake lever adjuster.
• Remove the rear brake cable
• Disconnect the gas cable.
• Release the clamps and disconnect the fuel supply and
vacuum pipes from the fuel pump.

APRILIA MOJITO 125 Specifications

General

Displacement	124 cc
Cooling System	Air cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Front Suspension	Telescopic fork
Rear Suspension	Single shock absorber
Front Brake	Disc
Rear Brake	Drum
Engine Type	Single cylinder, 4-stroke
