APRILIA RS 125 User Manual

CHASSIS
7 - 18
RS 125

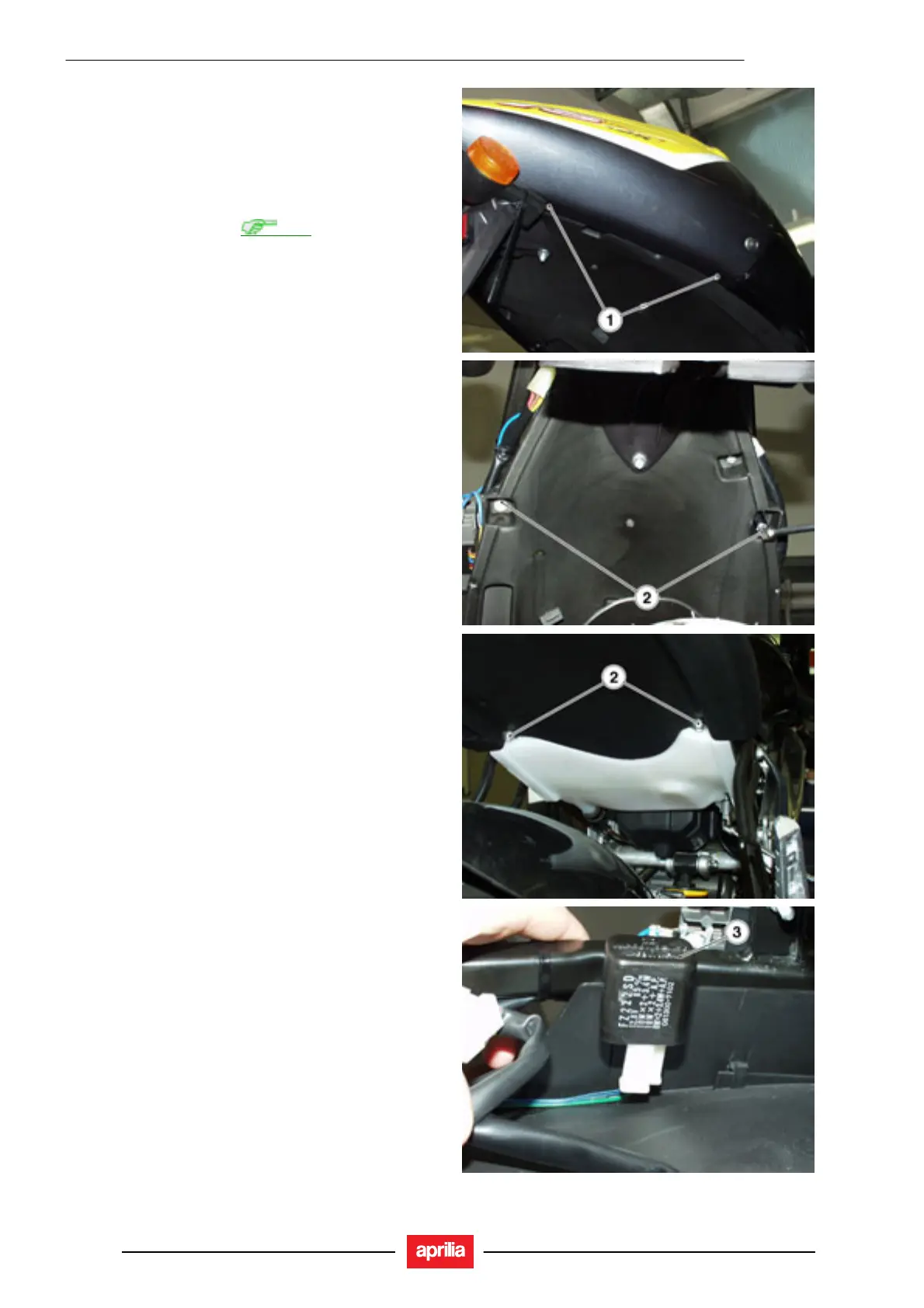

7.1.13. REMOVING THE SEAT END COVER
TORQUE WRENCH SETTINGS
Screws (1) 2 Nm (0.2 Kgm).
Screws (2) 3 Nm (0.3 Kgm).
Screws (4) 3 Nm (0.3 Kgm).
• Remove the seat; see
7.1.1.
• Release and remove the two screws (1) on both sides.
• Release and remove the four screws (2).
• Lower the seat end cover.
• Remove the flasher (3) from its housing.

APRILIA RS 125 Specifications

General

Displacement	124.8 cc
Transmission	6-speed
Front Suspension	Upside-down fork
Rear Suspension	Monoshock
Front Brake	Single disc
Rear Brake	Single disc
Dry Weight	114 kg
Fuel System	Carburetor
Frame	Aluminum perimeter frame
Engine Type	Single cylinder, 2-stroke
