17.Gear selector drum
18.M8x1.25 threaded pin
19.Selector locking plate
20.Complete main gear shaft
21.TE flanged screw, M6x15
22.Complete index lever
23.Spring

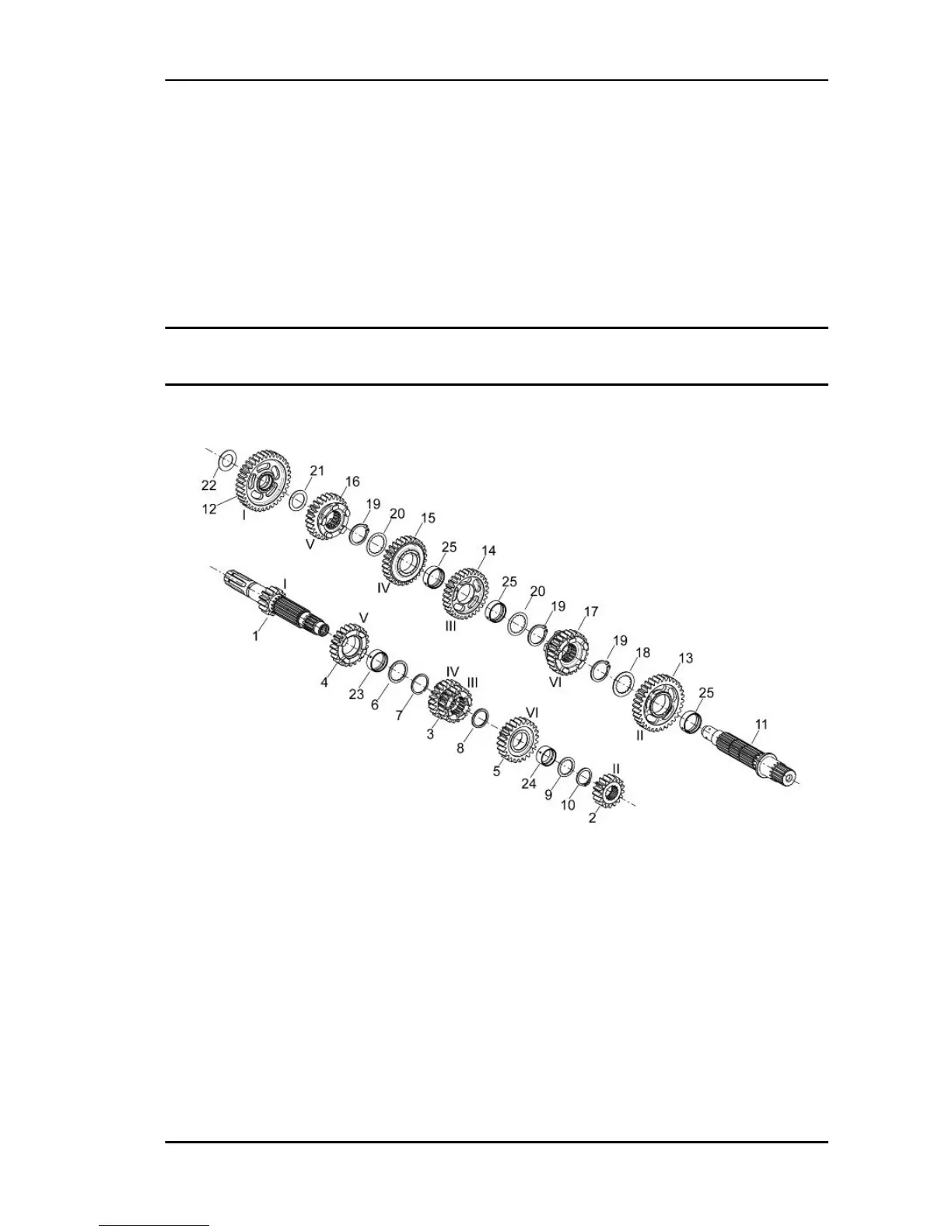

Gearbox shafts
Gearbox shafts diagram
Key:
1. Main gear shaft Z=14
2. 2nd gear on primary Z=17
3. 3rd - 4th gear on secondary Z=20/22
4. 5th gear on primary Z=23
5. 6th gear on primary Z=24
6. Thrust washer
7. Circlip
8. Thrust washer
9. Thrust washer
SL 750 SHIVER Engine
ENG - 3
