APT 340XAC Quick Start Guide

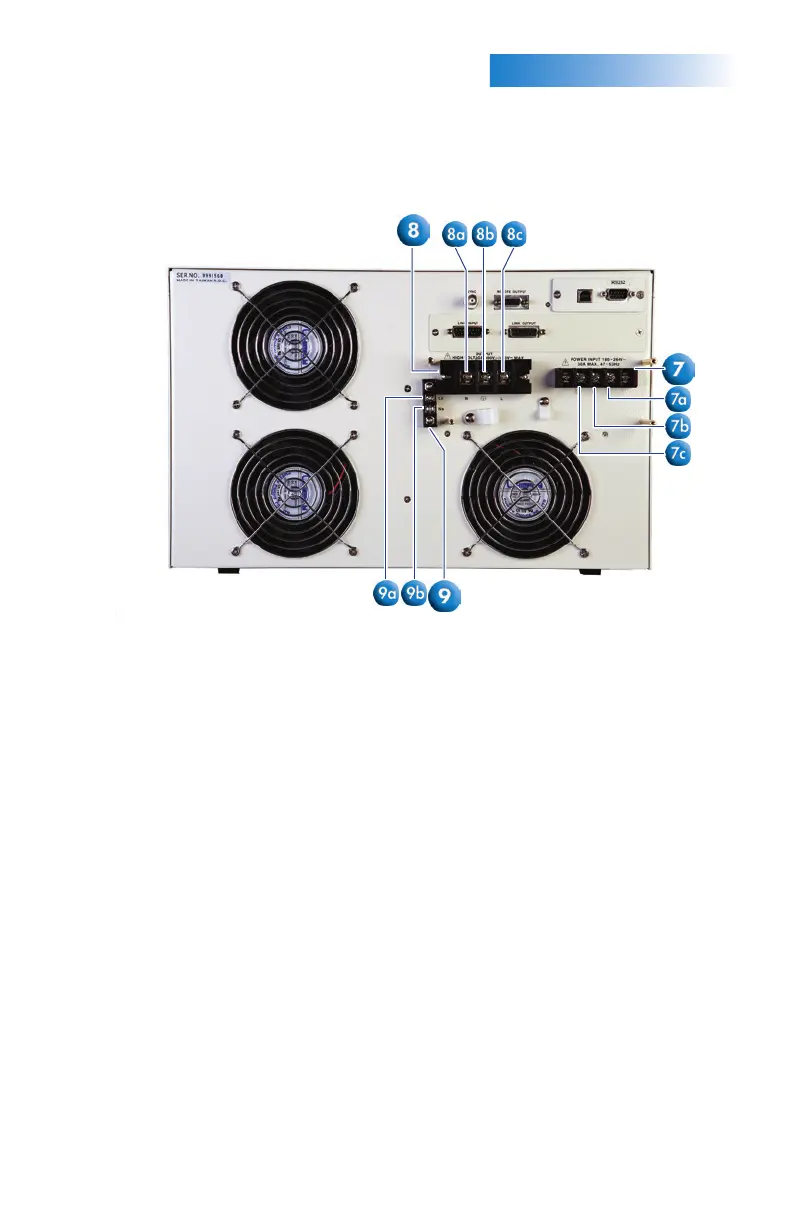

BACKPANELCONTROLS
3.
7. INPUT TERMINAL POWER BLOCK: provides input power to the instrument.
Model 340XAC requires 180-284 VAC 1Ø, 47-63 Hz.
7a. L: Line input screw terminal.
7b. N: Neutral input screw terminal.
7c. G: Earth ground (chassis) connection.
8. OUTPUT TERMINAL POWER BLOCK: Provides output power to the DUT.
8a. N: Neutral output screw terminal.
8b. G: Earth ground (chassis) connection.
8c. L: Line output screw terminal.
9. EXTERNAL SENSE OUTPUT TERMINAL BLOCK: Provides screw terminals for
external voltage sense leads.
9a. L: Line voltage sense screw terminal.
9b. N: Neutral voltage sense screw terminal.

APT 340XAC Specifications

General

Brand	APT
Model	340XAC
Category	AC Power Distribution
Language	English
