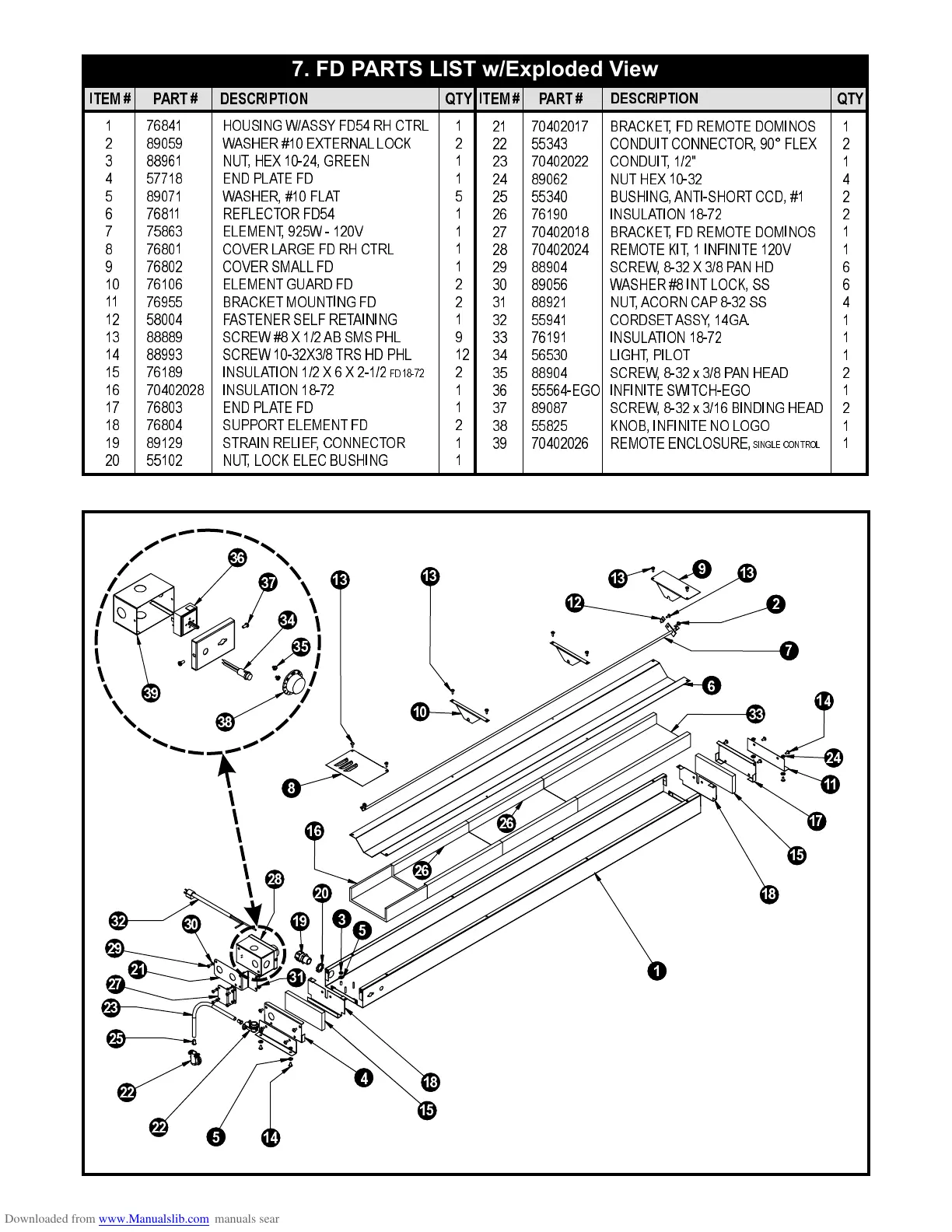

7. FD PARTS LIST w/Exploded View
ITEM #
ITEM #
PART #
PART #
DESCRIPTION
DESCRIPTION
QTY
QTY
1 76841 HOUSING W/ASSYFD54 RH CTRL 1
2 89059 WASHER #10 EXTERNAL LOCK 2
3 88961 NUT, HEX 10-24, GREEN 1
4 57718 END PLATE FD 1
5 89071 WASHER, #10 FLAT 5
6 76811 REFLECTOR FD54 1
7 75863 ELEMENT, 925W - 120V 1
8 76801 COVER LARGE FD RH CTRL 1
9 76802 COVER SMALLFD 1
10 76106 ELEMENT GUARD FD 2
11 76955 BRACKET MOUNTING FD 2
12 58004 FASTENER SELF RETAINING 1
13 88889 SCREW #8 X 1/2 AB SMS PHL 9
14 88993 SCREW 10-32X3/8 TRS HD PHL 12
15 76189 INSULATION 1/2 X 6 X 2-1/2 2
16 70402028 INSULATION 18-72 1
17 76803 END PLATE FD 1
18 76804 SUPPORT ELEMENT FD 2
19 89129 STRAIN RELIEF, CONNECTOR 1
20 55102 NUT, LOCK ELEC BUSHING 1
FD18-72
21 70402017 BRACKET, FD REMOTE DOMINOS 1
22 55343 CONDUIT CONNECTOR, 90° FLEX 2
23 70402022 CONDUIT, 1/2" 1
24 89062 NUT HEX 10-32 4
25 55340 BUSHING,ANTI-SHORT CCD, #1 2
26 76190 INSULATION 18-72 2
27 70402018 BRACKET, FD REMOTE DOMINOS 1
28 70402024 REMOTE KIT, 1 INFINITE 120V 1
29 88904 SCREW, 8-32 X 3/8 PAN HD 6
30 89056 WASHER #8 INT LOCK, SS 6
31 88921 NUT, ACORN CAP 8-32 SS 4
32 55941 CORDSETASSY, 14GA. 1
33 76191 INSULATION 18-72 1
34 56530 LIGHT, PILOT 1
35 88904 SCREW, 8-32 x 3/8 PAN HEAD 2
36 55564-EGO INFINITE SWITCH-EGO 1
37 89087 SCREW, 8-32 x 3/16 BINDING HEAD 2
38 55825 KNOB, INFINITE NO LOGO 1
39 70402026 REMOTE ENCLOSURE, 1
SINGLE CONTROL
34
36
38
39
35
37
