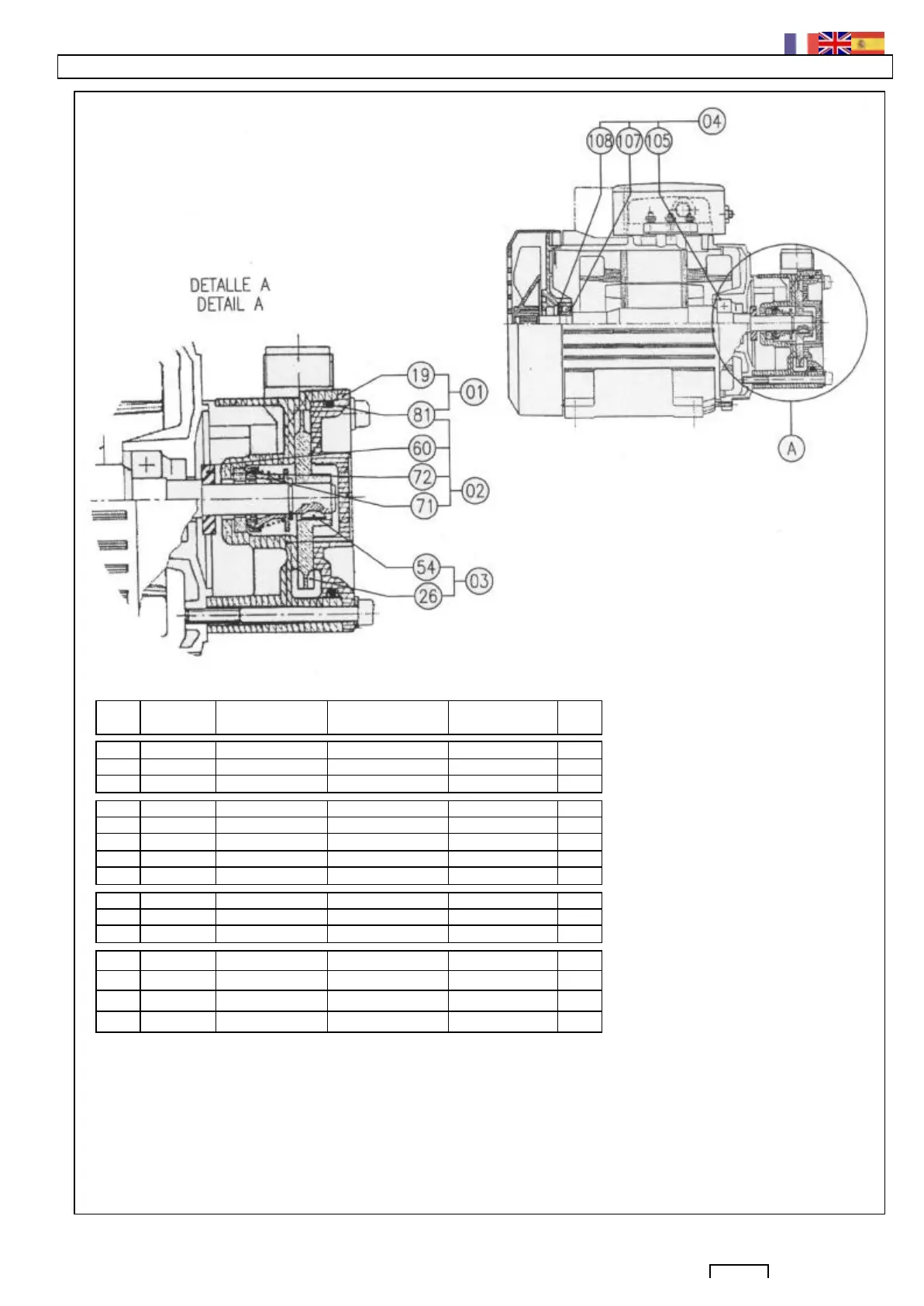

POMPE BP/BOOSTER PUMP/BOMBA BP
REP REF DESCRIPTION DESCRIPCIÓN DESCRIPTION QTE
QTY
01 720220-01 Kit couvercle Kit tapa Cover kit 1
19 Couvercle Tapa Cover 1
81 Joint de couvercle Junta de tapa Cover seal 1
02 720220-02 Kit de joint Kit estanqueidad Seal kit 1
60 Deflecteur Deflector Deflector 1
71 Joint mécanique Junta giratoria Mechanical seal 1
72 Joint de lanterne Inter anilla Lantern seal 1
81 Joint de couvercle Junta de tapa Cover seal 1
03 720220-03 Kit turbine Kit turbina Impeller kit 1
26 Turbine Turbina Impeller 1
54 Clef de disque Pasador disco Disc key 1
04 720220-04 Kit de roulement Kit rodamientos Bearing kit 1
105 Roulement latéral Rodamiento/bomba Pump side bearing 1
107 Ventil./roulement Rodamiento/ventil. Fan side bearing 1
108 Rondelle Arandela elástica Washer 1
Fig. 14
