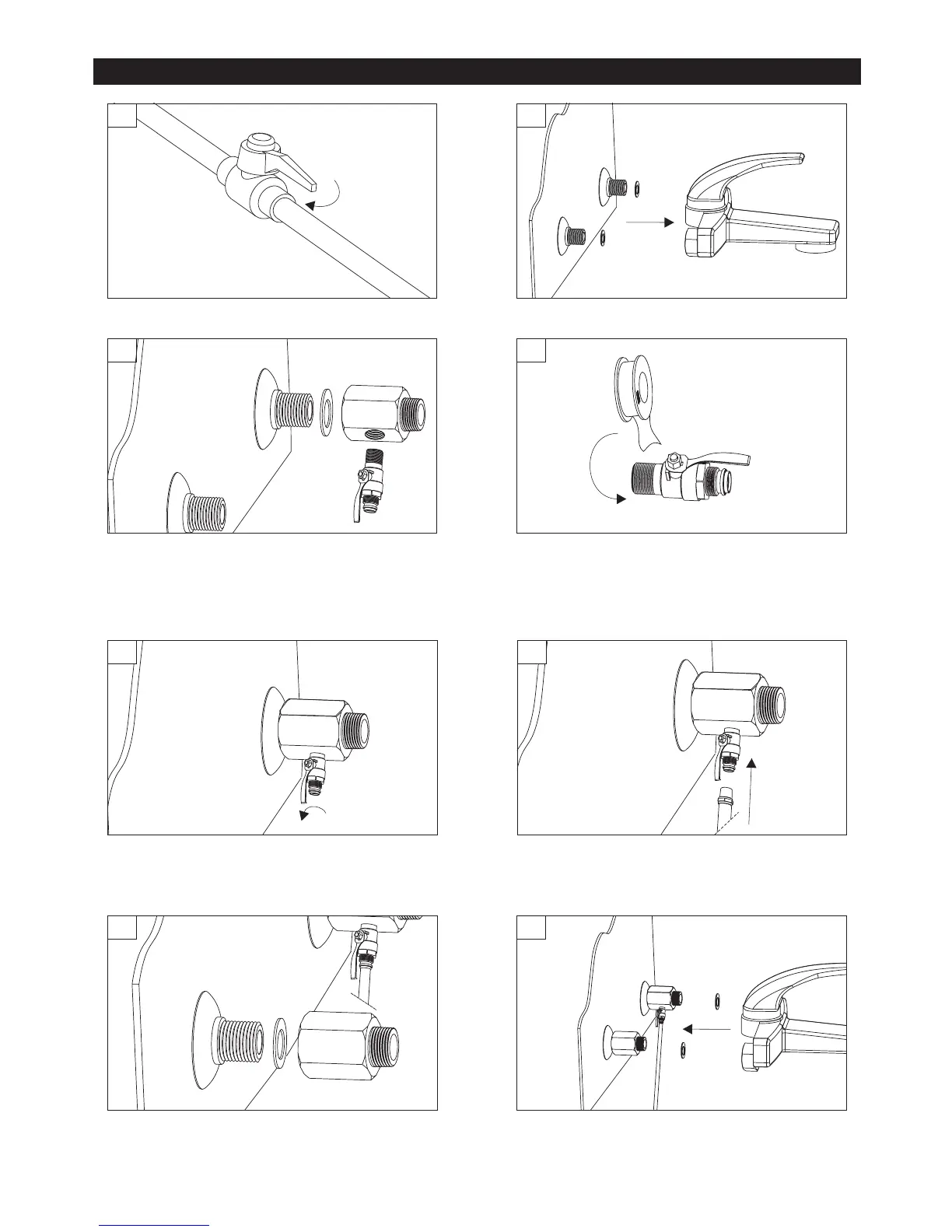

6.1. System Installation Option II - Wall Faucet
Unscrew sink faucet from the wall.Shut off water supply valve.
2
Wind a few layers of Teflon Tape TAS0003 on shut-off valve
adapter SEWBV 1414.
Screw chrome-plated adapter FT07 onto cold water pipe to
allow easy SEWBV1414 valve installation and its easy
opening and closing.
Remember to place rubber gaskets in
between the connections.
WARNING!
4
3
Screw SEWBV1414 valve into chrome-plated adapter
FT07.
Put the nut on flexible tubing and connect it with
SEWBV1414 valve push the flexible tubing all the way into
the valve and tighten the nut.
Screw chrome-plated adapter FT07 on hot water pipe.
WARNING! Remember to place rubber gaskets in
between the connections.
Screw sink faucet with chrome-plated adapters.
5
6
8
7
1
10
