ASSEMBLY INSTRUCTIONS

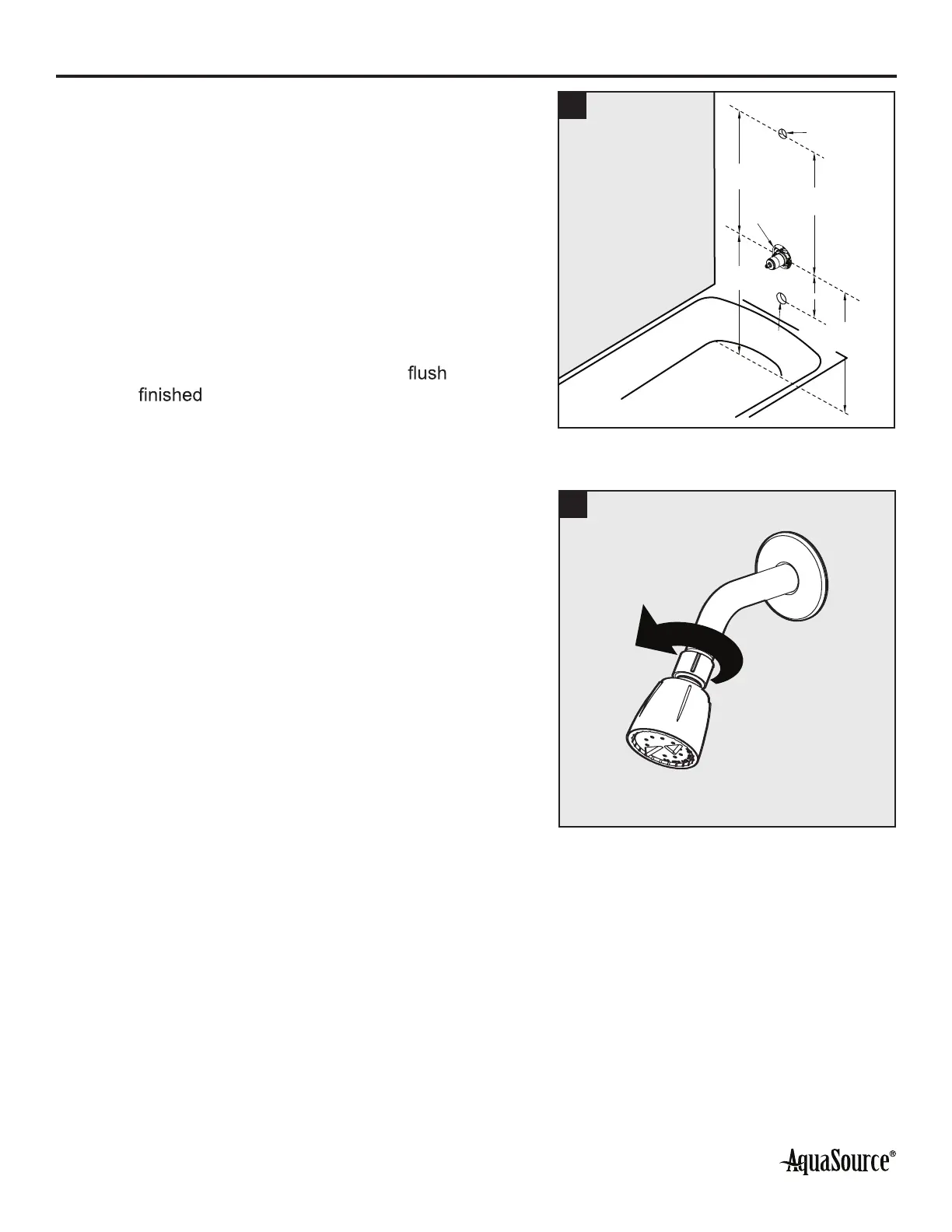

1. Prepare the bath area for installation:
a. Shut off the water supply to the tub and shower.
Note: This may require shutting off the main water
supply to your home.
b. Verify that the hole sizes and positions in the
wall are correct. There are the recommended
component measurements:
– Shower and Spout Outlet Hole: 1-1/4 in.
diameter
– Valve Access Hole: 6 in. diameter
– Recommended Valve Depth to Finished Wall:
2 in. min. to 2-1/2 in. max. Ensure that the
black template plate’s surface is
with the
exterior surface of the wall. Position
the valve body correctly in the wall. The 8 in.
minimum from the valve body to the tub spout
is required for proper operation.
1
Tub&Shower
Shower Only
30in.
6in. Dia
48in.
1 1/4in. Dia
1 1/4in. Dia
48in.
Shower Only
8in. Min.
30in.
Tub&Shower
2. Remove existing shower valve. Clear any debris from
the shower and bath area. Clean old sealant from any
threaded connections.
2
