AquaSource FS3A0000 - Step 3.1: Connecting Reverse Osmosis System; Step 3.2: Simple System Connection

4
ASSEMBLY INSTRUCTIONS
3.1
3.1
A
3/8 in. (9 mm)
1/4 in. (6 mm)
3.2
3.2
A
F
DRAIN
AIR GAP
FRESH
WATER
BRINE
WATER
3/8 in. ( 9mm)
3/8 in. ( 9mm)
1/4 in. (6mm)

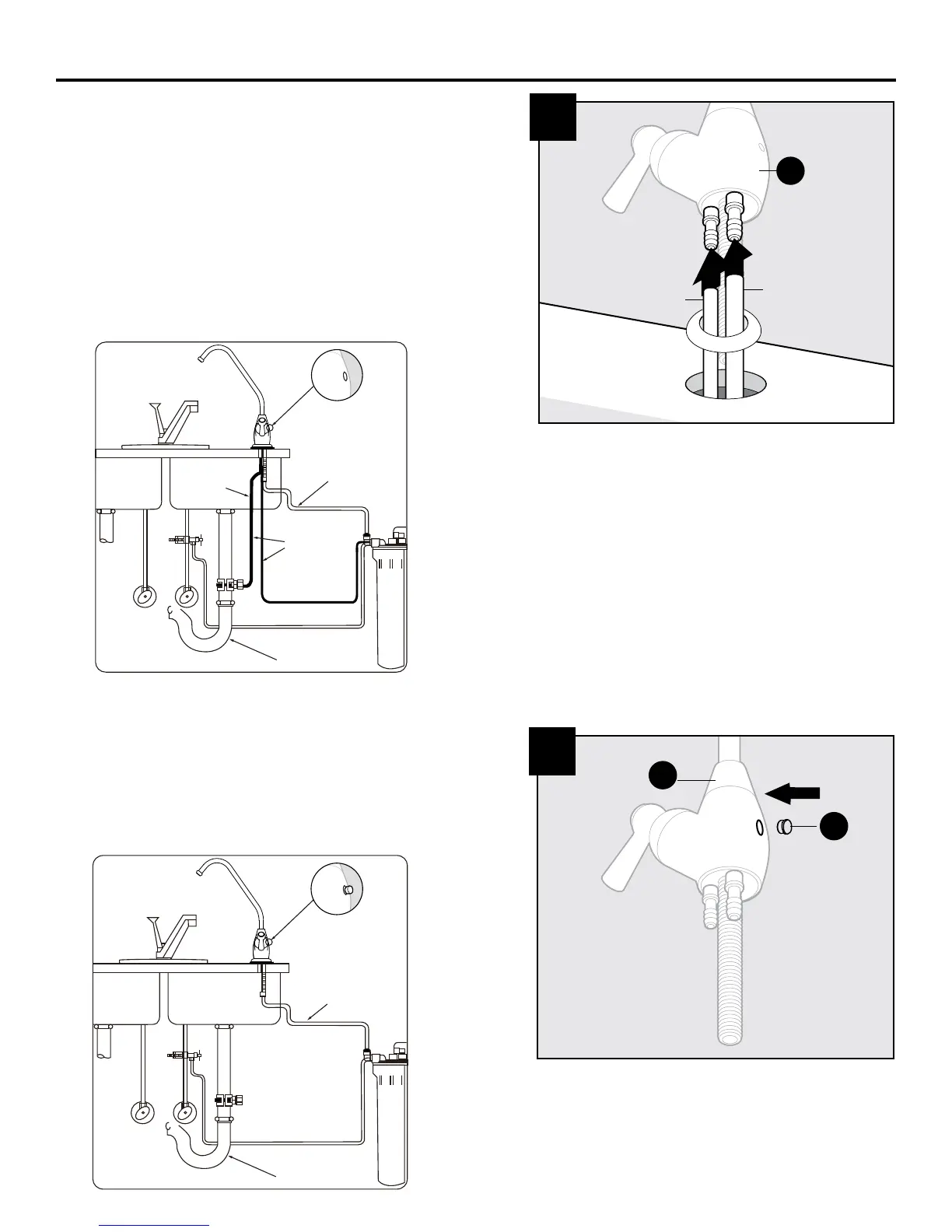

If the ltering system is a simple system and only
has one outlet, skip step 3.1. The optional non-air
gap plug (F) can be used to cover the air gap hole
located on the side of the faucet.
DRAIN
NON- AIR GAP
FRESH
WATER
3/8 in. ( 9mm)
If the ltering system is a reverse osmosis
system and a brine water line needs to run
through the integral air gap of the dispenser,
connect the 1/4 in. brine water line from the
R.O. unit to the smaller barb on the bottom of
the dispenser. Connect the 3/8 in. line to the
sink drain.
NOTE: Ensure that the air gap hole is always
free of debris and unplugged.
