Key Part Part
No. Description Qty. No.
1 Swivel Assembly 1 AT5112
2 Pool Cleaner Body (With Bristles) 1 *
3 Ring Adjuster 1 AT5001
4 Oscillator Impact Bumper (Pkg of 2) 1 AT5002
5 Oscillator Seals (Pkg of 2) 1 AT5104
6 Oscillator Kit (Includes Seals) 1 AT5103
7 Axle Shaft 1 AT5102
8 Unidapt Handle 1 AT5119
• Flow Director 1 AT5114
• Replacement Hose Kit
(1 each 20’, 8’, and 4’ Hose) AT5816
• 20’ Hose 1 AT5821
• 8’ Hose 1 AT5111
• 4’ Hose 1 AT5819

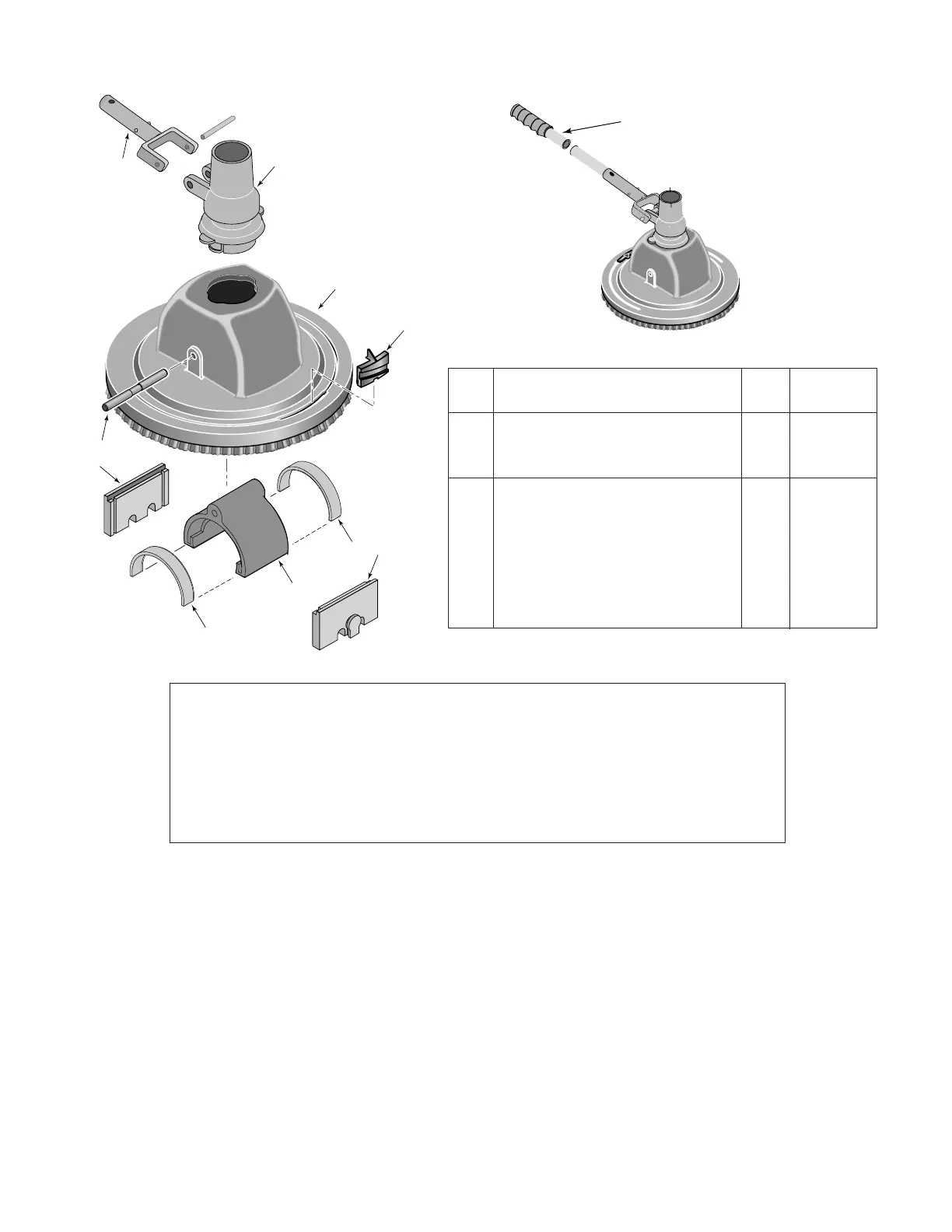

Oscillator Removal
To remove Oscillator from cleaner, tip cleaner on to its side, support side of
housing, and tap axle shaft out of body.
Oscillator will now slide out of cleaner body. Oscillator impact bumpers can
be pried out of slots in cleaner body (they slide towards bottom of cleaner).
To replace, reverse procedure.
• Not illustrated. * If body fails, replace cleaner.
