1 PRODUCT DESCRIPTION
The series MP400 ARAG pumps are multistage centrifugal pumps designed to work on agricultural machinery for spraying and crop spraying.
Thanks to their exibility they can be positioned on different points of the agricultural machinery and can be used on many different systems.
2 INTENDED USE
CAUTION!
This device is designed to be used ONLY ON AGRICULTURAL MACHINERY FOR SPRAYING AND CROP SPRAYING.
It is FORBIDDEN to use the device for other purposes as this may cause serious accidents.
ARAG can not be held responsible for damages to the equipment, persons, animals or properties caused by the non-observance
of these rules.
CAUTION:
THOROUGHLY FOLLOW ALL SAFETY GUIDELINES DESCRIBED IN THE
FOLLOWING CHAPTERS.
DO NOT START THE PUMP BEFORE READING CHAPTER 7 'STARTING THE PUMP'.

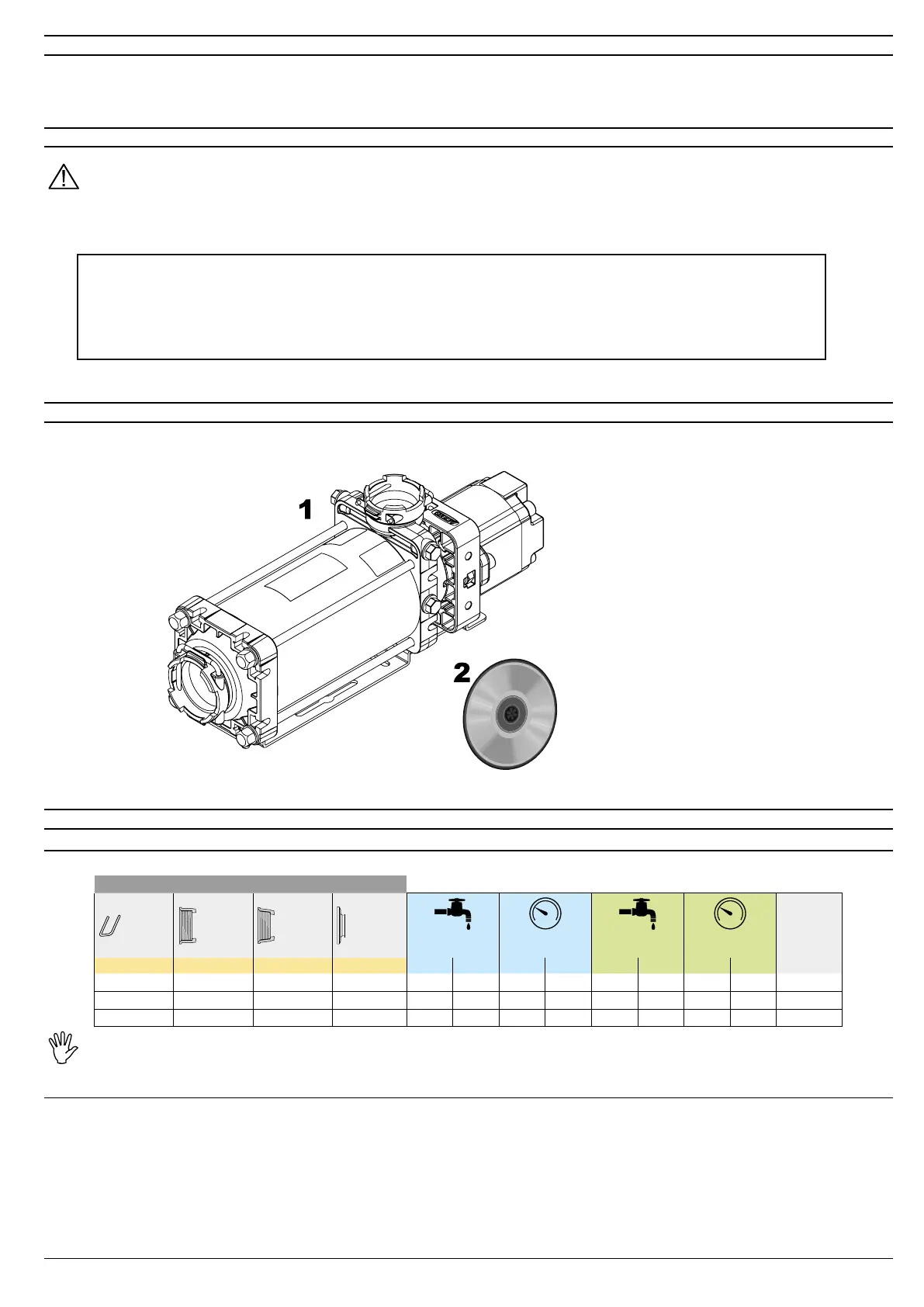

3 PACKAGE CONTENT
The table below indicates the components that you will nd in the MP400 PUMP package:
Legend:
1 MP400 Pump
2 Instruction manual (CD-ROM)
4 VERSIONS, CODES AND OPERATING CURVES
4.1 Versions and codes
Coupling
Fork
Thread
(BSP)
Thread
(NPT)
Clamp Motor
Max. water flowrate Max. water pressure Max. oil flowrate Max. oil pressure
CODE CODE CODE CODE l/min GPM bar PSI l/min GPM bar PSI cm
3
/rev.
970 05021 970 05022 970 05023 970 05024 517 137 7. 5 109 26.5 7 135 1955 7. 2
970 05001 970 05002 970 05003 970 05004 560 148 10.6 154 49.2 13 120 1735 11. 2
970 05031 970 05032 970 05033 970 05034 567 150 11. 0 160 64.3 17 106 1537 14.5
Features of the couplings and pipelines to use: Tab. 5 + 6
Fig. 1
Tab. 1
