5 INSTALLATION

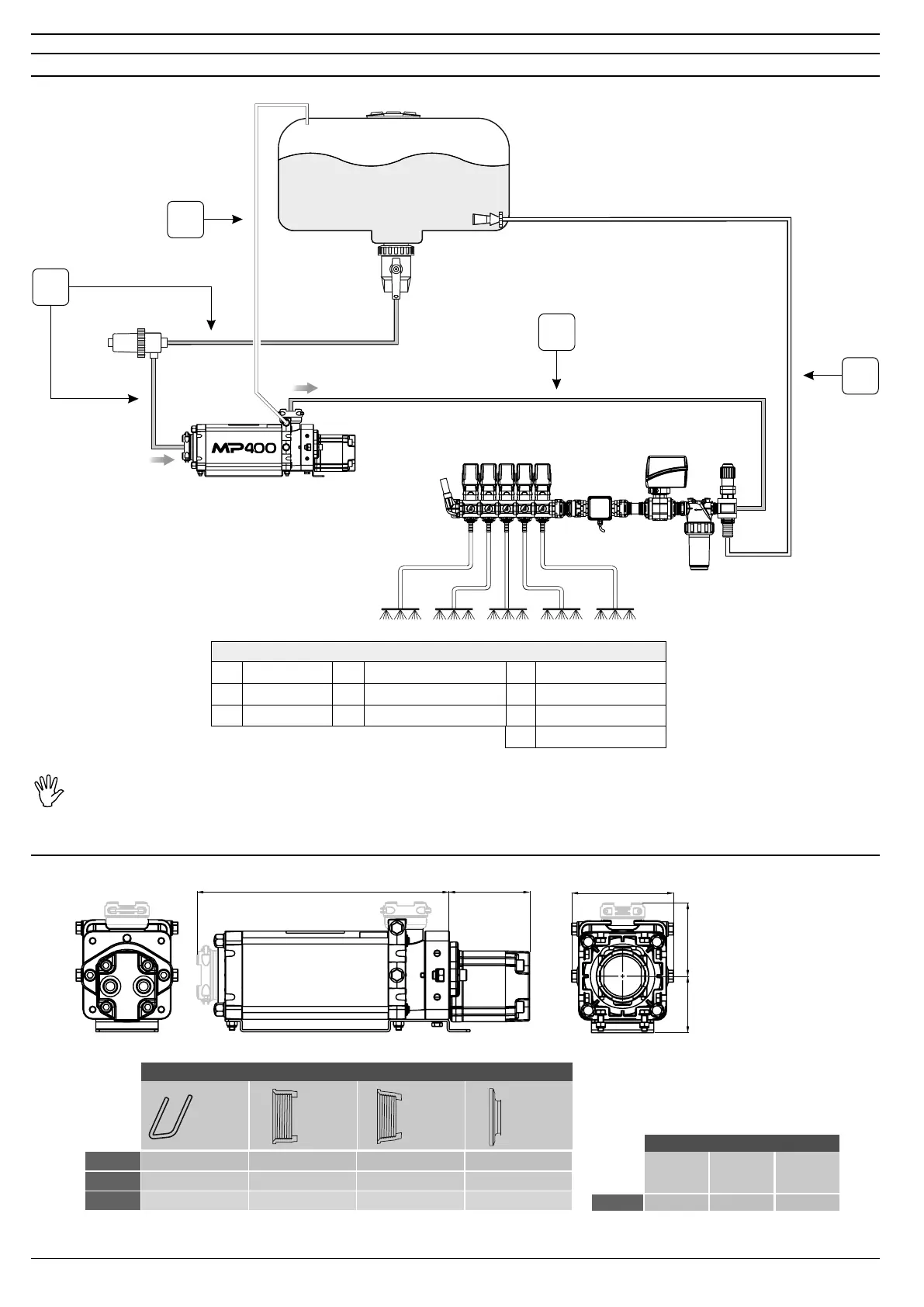

5.1 Example of a typical system composition
M
F
R
P
I
A
4
in
out
3
2
1
Legend:
A
Agitator
M
Pressure gauge
1
suction
F
Flowmeter
P
Proportional valve
2
bleed line
I
Filter
R
Control valve
3
main delivery
4
agitation delivery
CAUTION: The pump must always be tted under the liquid level, with a suction line as short and direct as possible and with a
size of AT LEAST the nominal diameter of the inlet.
5.2 Dimensions (mm)
82
Y
147
X X1
364
106
444
358
98
438
358
98
438
352
98
432
Coupling
Fork
Thread
(BSP)
Thread
(NPT)
Clamp
X (mm)
Y (mm)
W (mm)
Fig. 2
Tab. 2
Fig. 3
111
Motor
X1 (mm)
7, 2
cm³/rev.
116
11,2
cm³/rev.
121
14,5
cm³/rev.
Tab. 3a Tab. 3b
