Araknis Networks 100 Series User Manual

www.araknisnetworks.com | Support: 866.838.5052
9

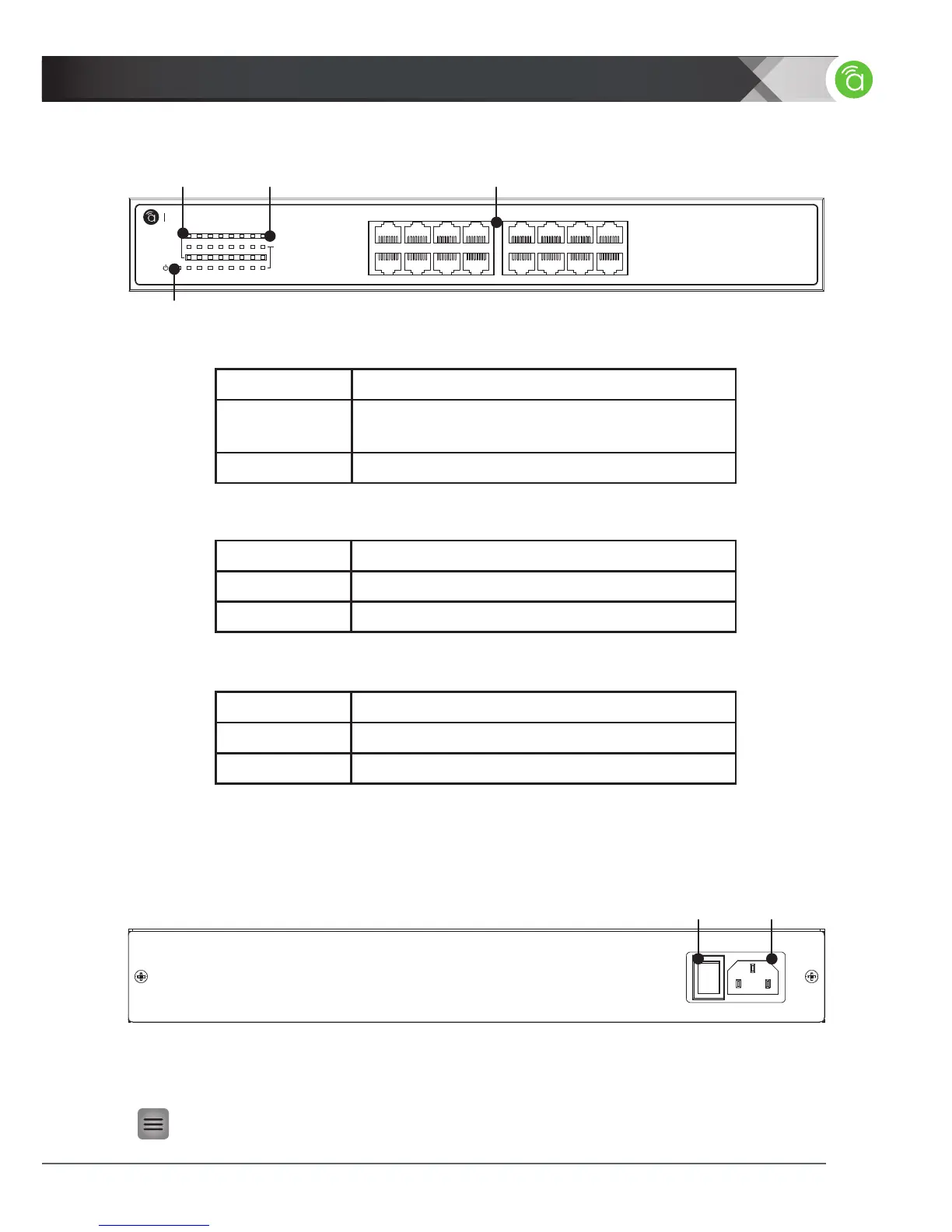

Front Panel Layout
Rear Panel Layout
Behavior Description
On Power is on
Off Power is off
3. Power LED Indicator
Behavior Description
Off
No device is connected/Connected device
supports 1 Gbps only
On Device is connected at 1 Gbps speed
1. 1 Gbps LED Indicator
Behavior Description
Off No device is connected
Blinking Device is connected and trafc is running
2. Link/Act LED Indicator
4. Ethernet Ports (RJ45)
Connect Ethernet network cables routed to equipment.
2. Power Jack
Attach an IEC power cable.
1. Master Power Switch
Toggle Switch for master power control.
2 4 6
8 10 12
14
16
1
3
5 7
9
11
13 15
1 3 5 7 9 11 13 15
2 4 6 8 10 12 14 16
Li nk /Act
1 Gbps
AN-100 -S W-F-16
1 2 4
3
ON 100-240VAC
OFF 50-60Hz
1 2
AN-100-SW-F-8 does NOT have a master power switch
