2 Installing the Compressor
5

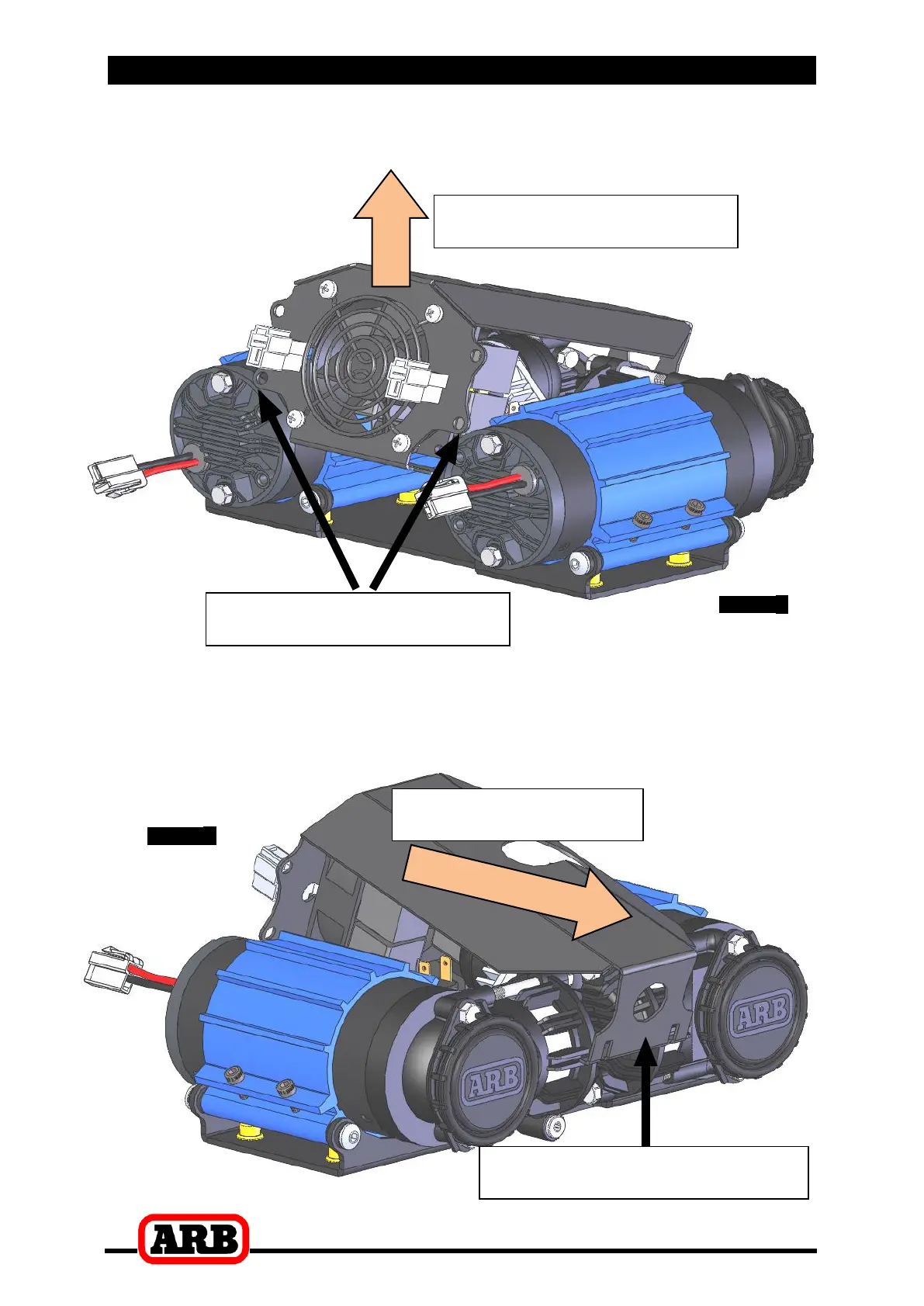

CLEARANCE BETWEEN COVER AND
COMPRESSOR MOTOR
LIFT THIS END OF THE COVER UNTIL
IT IS CLEAR OF THE MOTORS
SLIDE THE COVER TOWARD
THE AIR FILTER END
UNHOOK THIS TAB ON THE COVER
FROM THE RIBS ON THE COMPRESSOR
 Gently lift the cover upward from under the fan until it is just above the compressor
motors.
Figure
3.
 Slide the cover towards the intake filter end to unhook the cover from the compressor
head.
 Unplug the connectors from the pressure switch and lift the cover away from the
compressor.
Figure
4.
