31-DVI33N 8

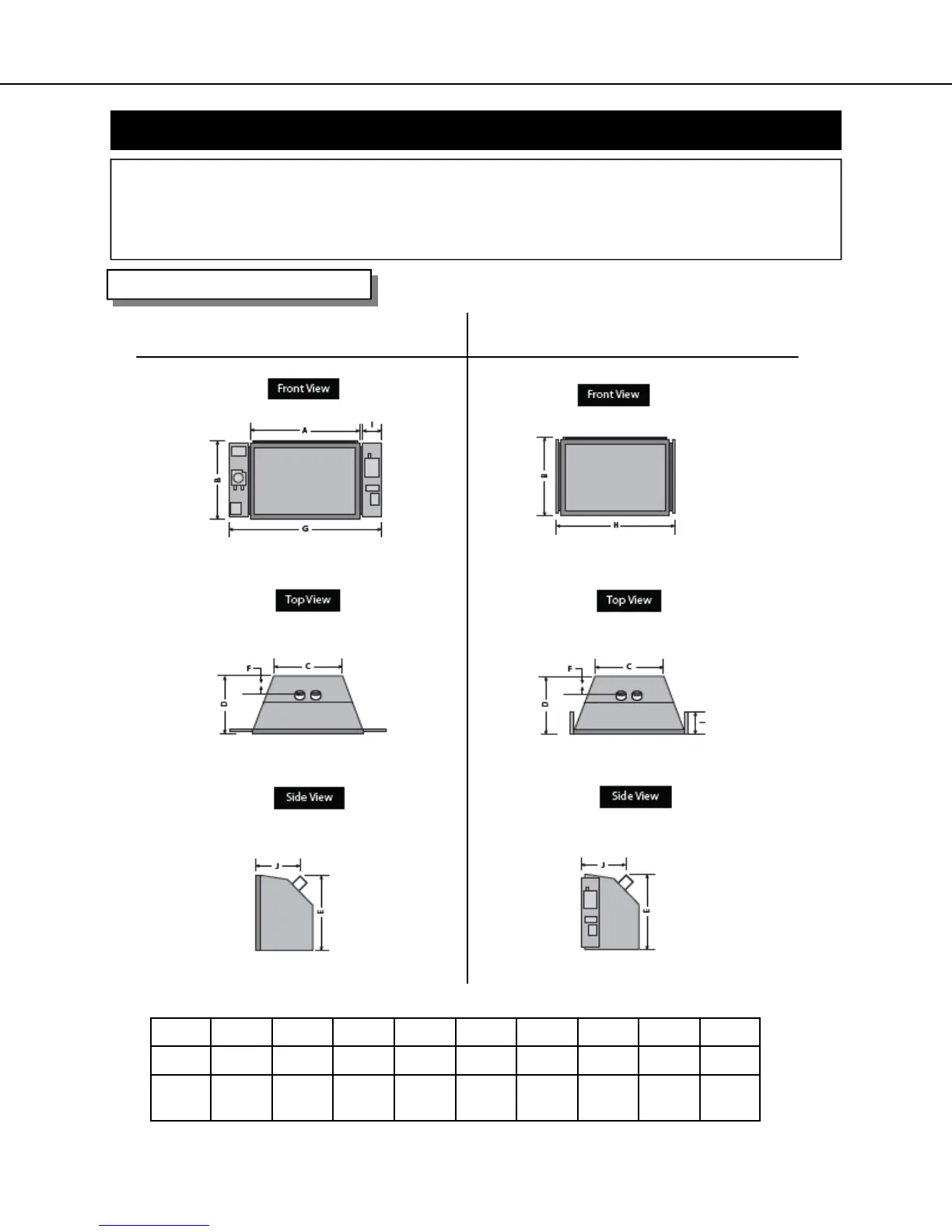

APPLIANCE DIMENSIONS
“Controls Out” Configuration
“Controls In” Configuration
A B C D E F G H I J
30” 20/1/4” 18-3/4” 16” 20” 2-1/2” 41-3/4” 33” 7” 12”
762
mm
514
mm
476
mm
406
mm
508
mm
63
mm
1060
mm
838
mm
178
mm
305
mm
The control panels can be mounted in the following different ways. They are shipped in the “Controls In” configu-
ration. They can be moved to the “Controls Out” configuration by removing the two mounting screw on each side
and swinging the panels out and replacing the screws. They can also be disconnected and placed remotely within
the limits of the gas connections and electrical wiring making sure to place them away from any heat source over
150 degrees Fahrenheit or 65 degrees Celsius
