Arcora BLANCUS 40 - Page 12

12
201
4X16 pan head
self-tapping screws
202
Clean water tank
cover
203
Clean water tank
buckle
204
M5X12 M5X12
round head screw
205
Clean water tank
206
Water valve rubber
sleeve
207
Water valve
208
Sewage tank swing
buckle
209
Water tank swing
buckle spring
210
Water tank swing
buckle screw
211
Waste water tank
212
Sewage tank inner
elbow
213
3X12 countersunk
head self-tapping
screw
214
Bottom cover of
float cover
215
Float
216
Float cover
217
Sewage tank cover
218
Sewage tank
extraction jacket
219
3X12 countersunk
head self-tapping
screw

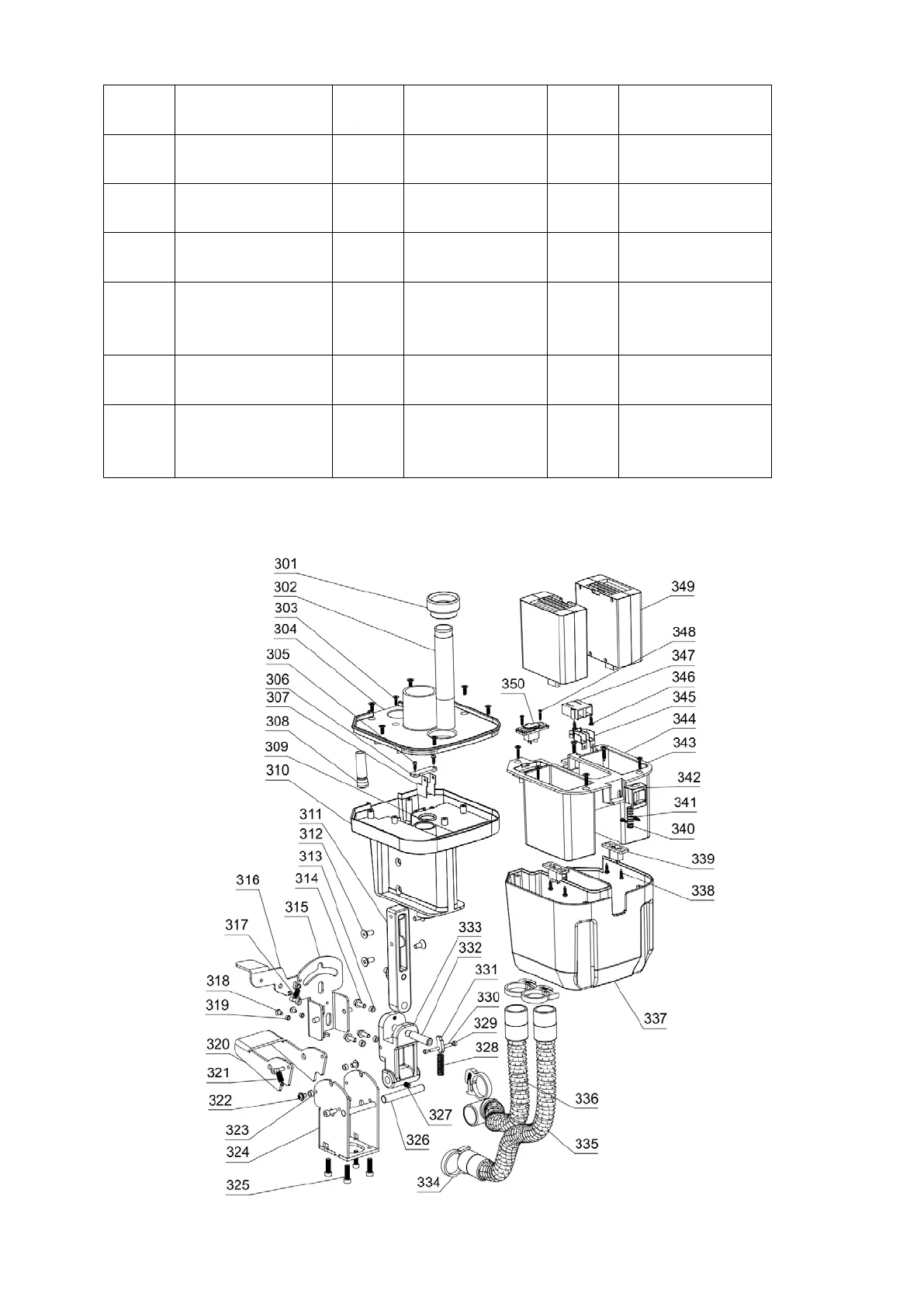

Explosion diagram 3
