16
503
Brush plate motor bottom
plate
504
4X12 pan head self-tapping
screws
505
4X30 pan head self-tapping
screws
506
Left thread brush buckle
507
Brush buckle magnetic
sheet
508
4X12 countersunk head
self-tapping screw
509
4X20 countersunk head
self-tapping screw
510
Strong magnet ф15X5
511
Brush plate
512
Right thread brush buckle
513
Right thread brush motor

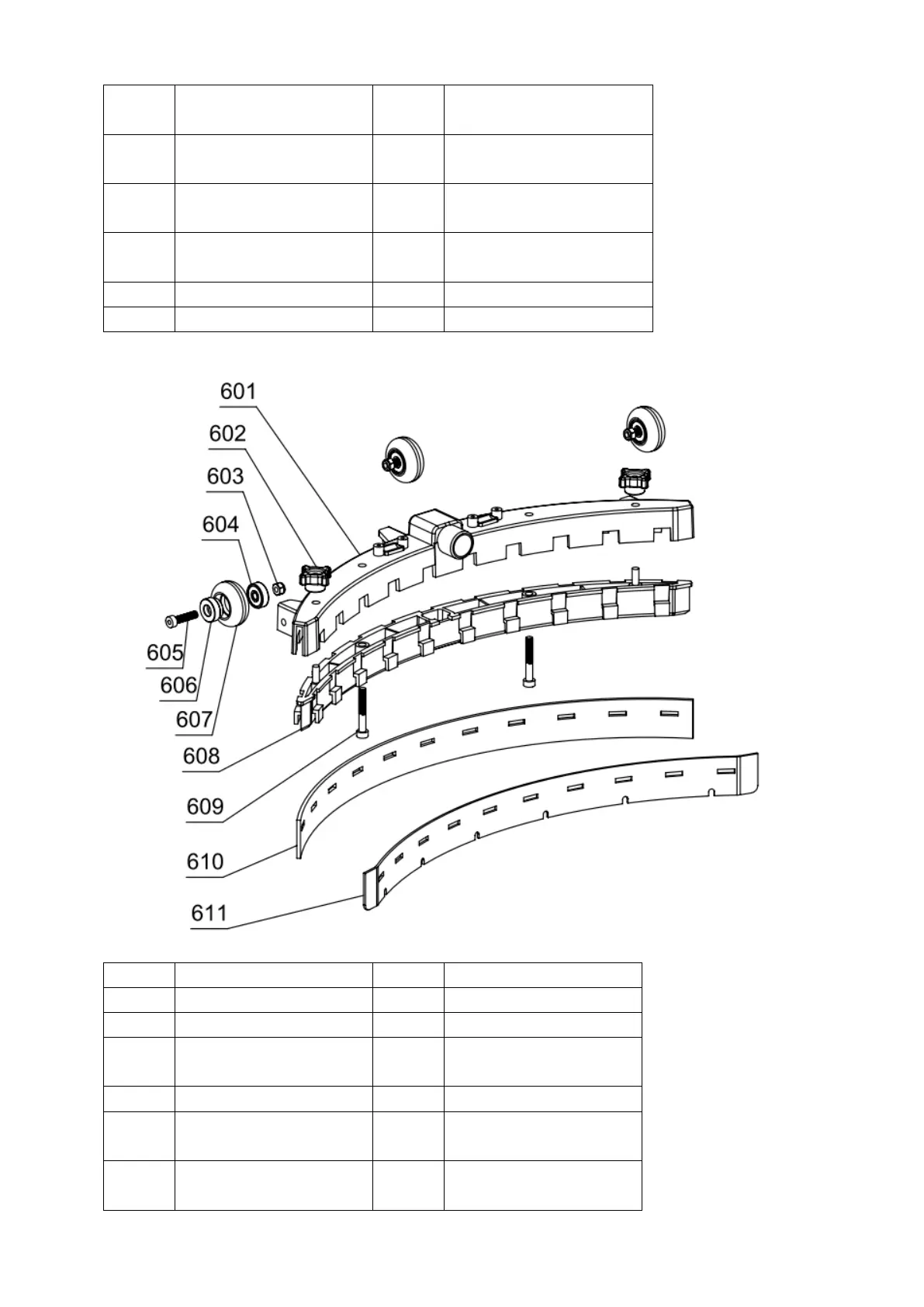

Explosion diagram 6
Number
Name
Number
Name
601
Squeegee shell
602
M6 star nut
603
M6 fasten the screw nut
604
606 Bearing
605
M6X25 cylinder head
screw
606
Squeegee hub
607
40mm squeegee
608
Squeegee Internals
609
M6X40 cylinder head
screw
610
Squeegee rear rubber strip
611
Squeegee front rubber
strip
