Page 38
!! CAUTION !!
Be careful not to spill any uid when
lling the brake uid reservoir. Wipe
away spilled uid immediately in or-
der not do damage plastic parts.
!! CAUTION !!
When the right-hand jam nut can-
not be loosened, both brake pads
must be replaced. Take the ATV to
an authorized ARCTIC CAT ATV
dealer for this service.

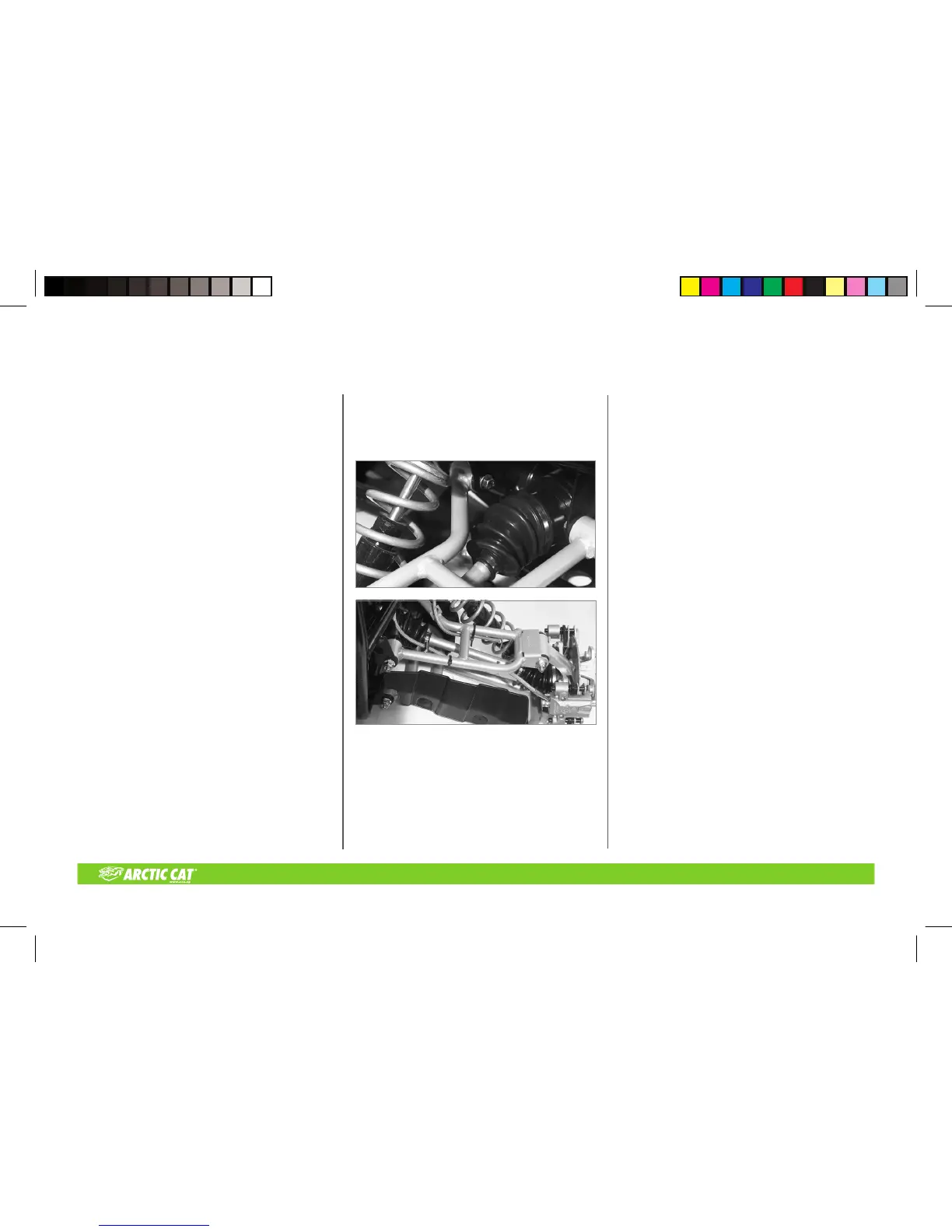

Protective Rubber Boots
The protective boots should be in-
spected periodically.
Battery
The battery is located under the
right rear fender. The level of the
battery uid must be kept between
the MAX and MIN level lines at all
times. If the level drops below the
MIN level line, add only distilled
water until it reaches MAX level
line.
!! WARNING !!
When working on the battery, you
have to be extremely careful in
order to not get in contact with the
battery acid.
If the battery is discharged, remove
the battery from the ATV and charge
the battery at the standard charging
rate of 1,4 amps for 10 hours.
