This document is the owner's manual for an Arctic Wind portable air conditioner, model 2AP7500A. It provides comprehensive instructions for safe operation, installation, usage, maintenance, and troubleshooting of the device.

Function Description

The Arctic Wind portable air conditioner is designed to cool and dehumidify rooms. It can operate in three primary modes: Cool, Fan, and Dry. In Cool mode, it provides cooling and dehumidification, ideal for hot and muggy weather. Fan mode allows for air circulation without cooling, and in Dry mode, it reduces room humidity without significant cooling, suitable for damp conditions in spring and autumn. The unit is equipped with casters for easy placement and a self-diagnosis system to identify malfunctions, displaying error messages on the display screen.

Important Technical Specifications

The unit uses fluorinated greenhouse gases as refrigerant. Specific GWP (Global Warming Potential) values are provided for common refrigerants: R410A: 2088, R134a: 1430, R290: 3, R32: 675. The appliance is compliant with the RE Directive (2014/53/EU) and FCC Rules (part 15). It requires a grounded power source and features an integrated circuit breaker on the power cord for safety, which should be tested periodically. The appliance is designed for rooms with temperatures between 64°F-95°F (18°C-35°C) for cooling and 50°F-77°F (10°C-25°C) for heating (though heating mode is not explicitly detailed in the operation instructions, only temperature ranges for room conditions are mentioned). The target temperature range for Cool mode is 64°F-90°F (18°C-32°C). The remote control has an operating range of up to 23 feet (7 meters) and uses two AAA 1.5V batteries. The unit is designed to be installed on a sturdy, level floor capable of supporting up to 110 lbs (50 kg). Minimum installation clearance is 17.5 inches (45 cm) around and above the unit. The exhaust hose should be kept to a minimum length of 15.7 inches (40 cm) to ensure efficiency.

Usage Features

The portable air conditioner offers several user-friendly features:

Control Panel and Remote Control: The unit can be operated via a control panel on the device or a remote control. The remote control includes buttons for On/Off, Increase/Decrease temperature, Fan speed, Mode selection (Cool, Dry, Fan), Swing (though the manual notes "no auto swing function" for this model, indicating manual adjustment of deflectors), Timer, and Sleep function, as well as a Unit Switch button for Celsius/Fahrenheit.
Modes of Operation:
- Cool Mode: Allows selection of target temperature and fan speed (High/Low). The manual recommends setting the temperature between 75°F-81°F (24°C-27°C) to avoid unnecessary power consumption.
- Fan Mode: Circulates air with selectable fan speeds (High/Low) without requiring the air hose to be attached.
- Dry Mode: Reduces room humidity automatically, with fan speed selected automatically by the appliance (default low speed). The air exhaust hose should be attached for moisture discharge.
Timer Function: Users can program the appliance to start up or shut down after a set period (1-24 hours), optimizing energy use.
Sleep Function: Designed for night use, this function gradually reduces operation to save energy. In Cool mode, the selected temperature increases by 1°F per hour over a 2-hour period and maintains this new temperature for 6 hours before shutting off. Fan speed is automatically set to Low, and the screen brightness is reduced. This function cannot be set in Fan or Dry mode.
Temperature Unit Switch: The unit can display temperature in either Fahrenheit or Celsius.
Self-Diagnosis System: Displays error codes (e.g., "LE" for low temperature/frost prevention, "PF" for probe failure, "FE" for full tank) to indicate malfunctions, guiding users on necessary actions.
Water Drainage: The unit has two drainage methods:
- Manual Draining: For occasional drainage when the internal safety tank is full (indicated by "FE" error). Involves unplugging the unit, placing a pan under the lower drain plug, removing the plug, draining water, and replacing the plug.
- Continuous Draining: For continuous water discharge, especially in Dry mode. Requires connecting a drain hose (1/2" or 12.7mm, not supplied) to the drain outlet, directing water to a floor drain or bucket. The manual emphasizes ensuring the drain hose height and section are not higher than the drain outlet to prevent drainage issues.

Maintenance Features

Regular maintenance is crucial for the appliance's efficiency and longevity:

Cleaning the Cabinet: The appliance cabinet should be cleaned with a slightly damp cloth and then dried with a dry cloth. Harsh chemicals, gasoline, alcohol, solvents, or insecticide sprays should not be used. The appliance should never be submerged in water.
Cleaning the Air Filters: The air filters should be cleaned weekly to maintain efficiency. This involves opening the unit grill, removing the evaporator (filter) from the back, vacuuming dust, or washing it in warm water (not hotter than 104°F/40°C). After washing, the filter must be thoroughly dried before reattaching to the intake grille.
End of Season Operations: To prepare the unit for storage, the internal circuit should be completely emptied of water by removing the cap and draining all residual water into a basin. The filter should be cleaned and dried thoroughly before storage.
Start of Season Operations: Before resuming use, ensure the power cable and plug are undamaged, the grounding system is efficient, and follow all installation instructions.

Safety Information

The manual emphasizes several safety precautions:

Always disconnect the appliance from its power source during service or cleaning.
Do not pierce the cooling circuit or modify the appliance/power cord.
Ensure the plug is firmly and completely inserted into a properly grounded outlet.
Do not plug other appliances into the same outlet.
Avoid placing the power cord or appliance near heat sources.
Transport the appliance in a vertical position and place it on a stable, level surface. If transported on its side, allow it to stand upright for 6 hours before use.
Always use the control panel or remote control to turn the unit off; do not start/stop operation by plugging/unplugging the power cord.
Do not touch control panel buttons with wet fingers.
Do not use hazardous chemicals for cleaning.
Unplug immediately if unusual sounds, smoke, or odors occur, or if water enters the unit.
Use two or more people to lift and install the unit.
Grasp the plug, not the cord, when plugging in or unplugging.
The appliance contains flammable refrigerants and should be stored in a well-ventilated room without continuously operating ignition sources.
Do not use means to accelerate defrosting or clean other than recommended by the manufacturer.
Keep ventilation openings clear of obstruction.
The appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities unless supervised or instructed. Children should be supervised to ensure they do not play with the appliance.

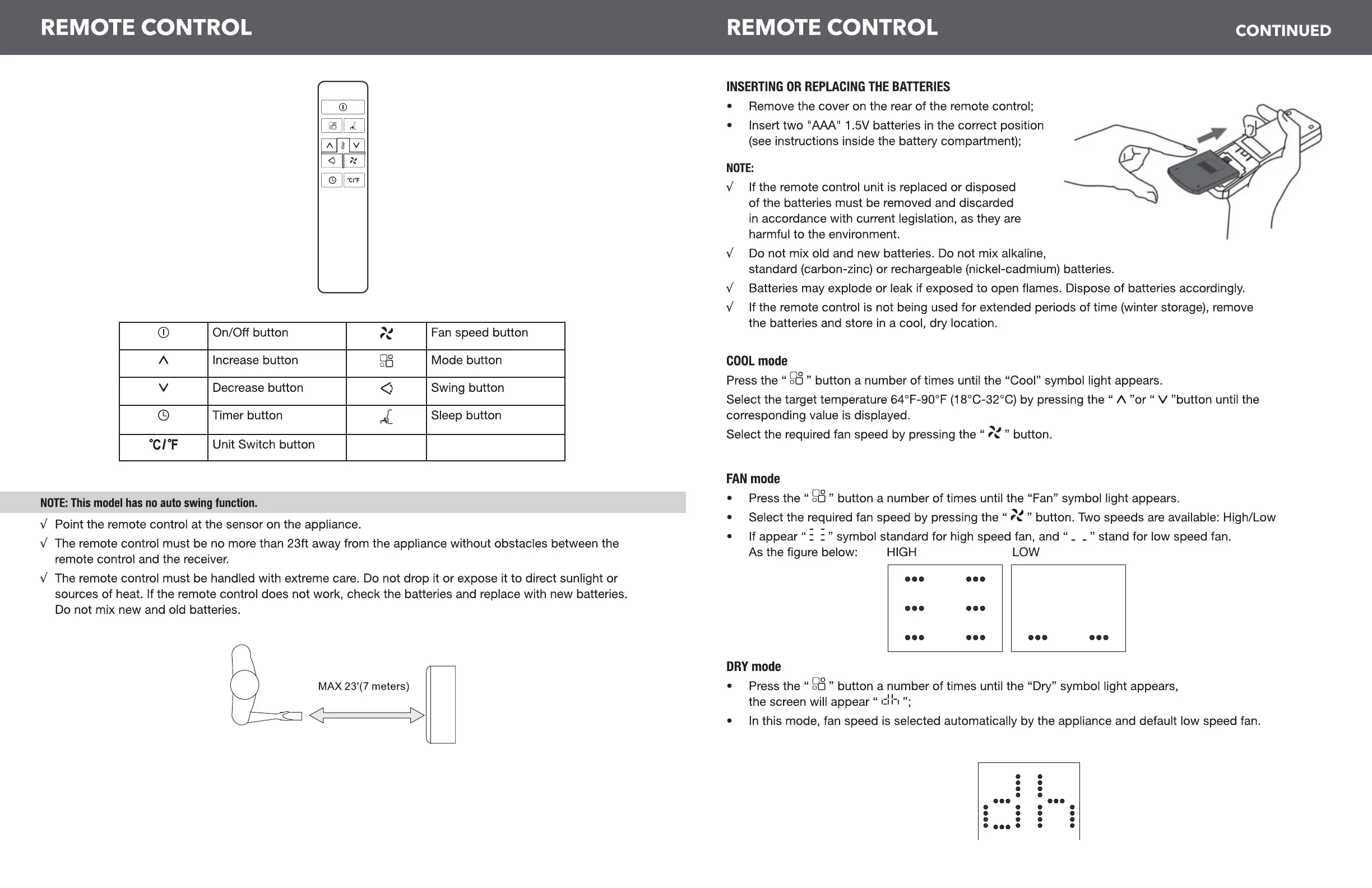

ARCTIC WIND 2AP7500A - Remote Control; Remote Control Buttons; Inserting or Replacing Batteries; Cool Mode (Remote)
