11

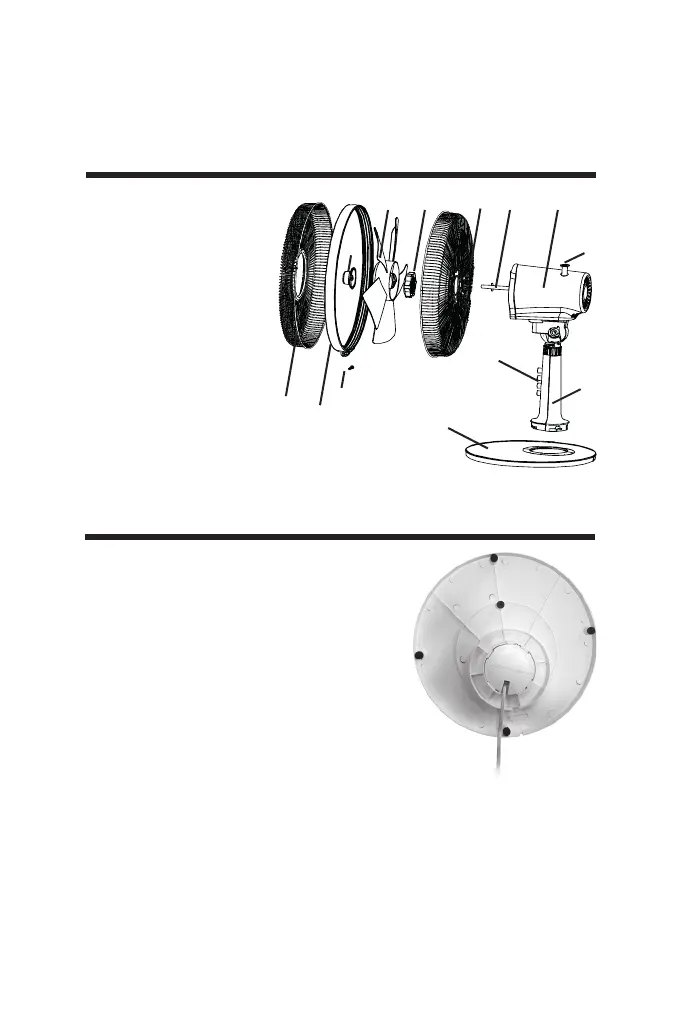

1. Base
2. Control panel
3. Main body
4. Oscillation knob
5. Motor
6. Motor shaft
7. Back grille
8. Lock ring of the back
grille
9. Fan
10. Lock ring of the fan
11. Lock ring
12. Front grille
13. Safety screw
1
2
3
4
6789
10
11
12
13
5
1. Mount the base (1) on the main body(3):
insert the power code into the hole of the
base, place the base on the main body as
shown in gure and x by rotating it clockwise.
2. Fix the power cord into their slots.
3. Unscrew the lock ring of the fan (10) from
the motor shaft (6) by turning it clockwise.
4. Unscrew the lock ring of the back grid
(8) from the motor shaft (6) by rotating it
counterclockwise.
5. Insert the back grille (7) on the motor shaft
(6) making sure that the three locking pins
are placed into their holes of the back grille.
Screw the lock ring of the back grille (8) by
turning it clockwise.
6. Insert the fan (9) on the motor shaft (6) and fasten the proper lock ring
(10) by rotating counterclockwise.
7. Take out the safety screw (13) and open the ap from the lock ring (11).
Place it on the front grille (12).
Assembling
Technical informations
