Technical informations
10

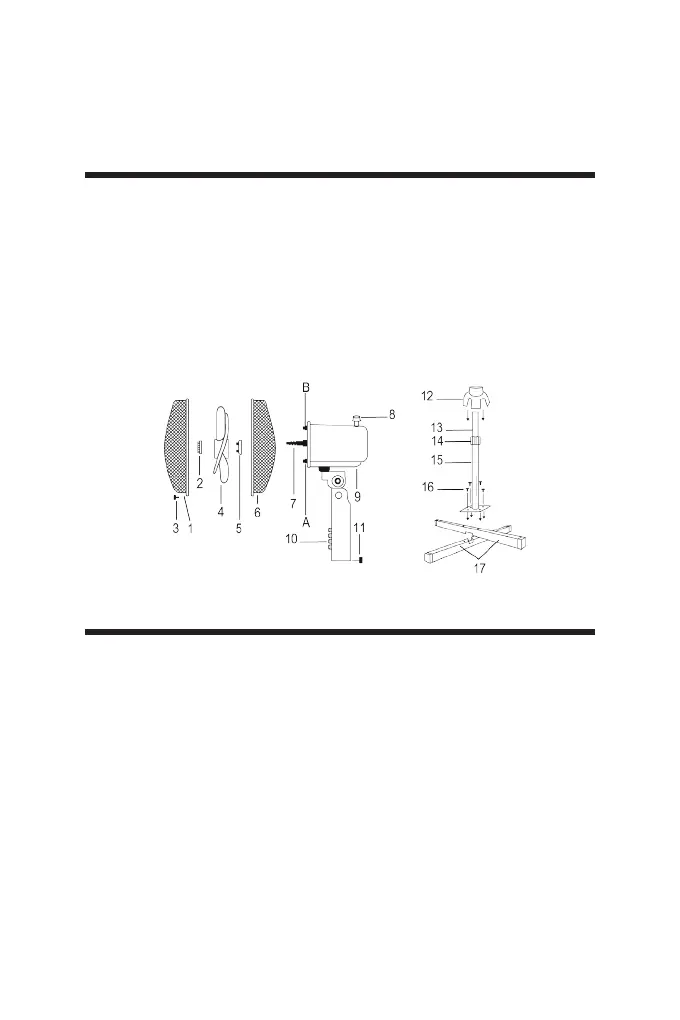

1. Front grille
2. Lock ring of the fan
3. Safety screw of the fan
4. Fan
5. Lock ring of the back grille
6. Back grille
7. Motor shaft
8. Oscillation knob
9. Motor
10. Control panel
11. Main body screw
12. Small decorative base
13. Adjustment rod
14. Height adjustment knob
15. Base rod
16. Screws for xing the base rod
(4 pieces)
17. Cross base
A-B. Locking pin for the rear grille
Assembling
1. Unscrew the screws (16) from the two parts which form the basis of
the cross (17).
2. Fit the two parts which form the basis of the cross (17) as is shown in
the picture.
3. Unscrew the height adjustment knob (14) from the base rode (15) and
insert the small decorative base (12).
4. Pull out the adjustment rod (13) from the base rod (15) then tighten the
height adjustment knob (14) on the base rod (15).
5. Tighten the base rod (15) with the screws (16) previoulsy unscrewed
from the cross base (17).
6. Loosen the screw of the main body (11).
7. Insert the main body on the adjustment rod (13). Tighten the screw
(11) for xing it.
